- Part Number

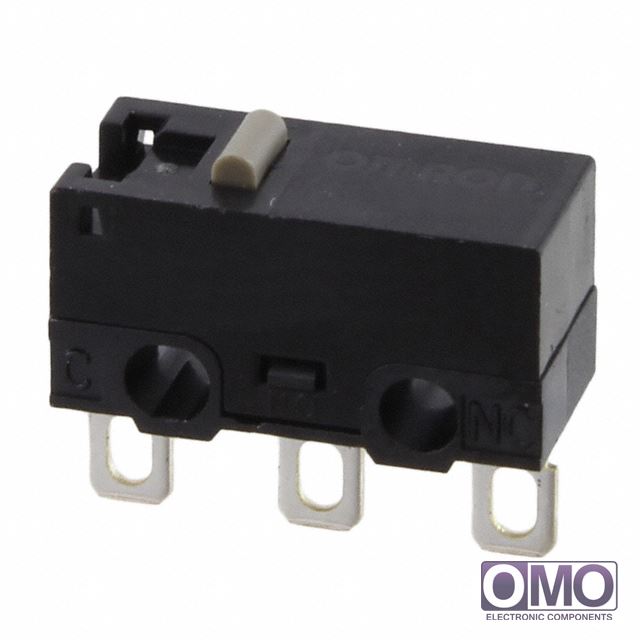

D2F-D3
- Manufacturer
Omron
- Description
- SWITCH SPDT 3A 150GF SOLDER 125V
- Category
- Switches
- Family
- Snap Action, Limit Switches
- To learn about the specification of D2F-D3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add D2F-D3 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of D2F-D3.
- We are offering D2F-D3 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of D2F-D3
| Packaging | Bulk | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 3A (AC), 2A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Round (Pin Plunger) | |
| Mounting Type | Chassis Mount | |
| Termination Style | Solder Lug | |
| Ingress Protection | IP40 | |
| Features | - | |
| Operating Force, Torque | 150gf | |
| Release Force | 20gf | |
| Pretravel | 0.020" (0.5mm) | |
| Differential Travel | 0.005" (0.12mm) | |
| Overtravel | 0.010" (0.25mm) | |
| Operating Position | 0.217" (5.5mm) | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 30,000 Cycles | |
| Operating Temperature | -25°C ~ 65°C | |
| Other Names | D2F-D3-ND D2FD3 SW1991 | |
