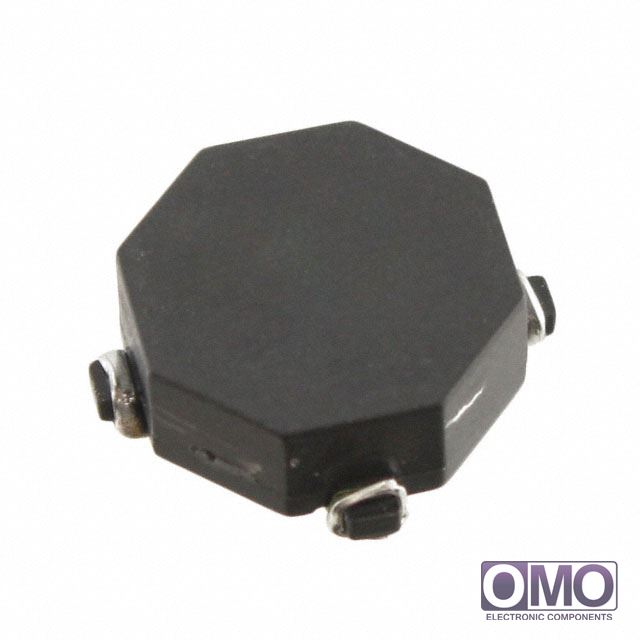

CTX50-3A-R

To learn about the specification of CTX50-3A-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CTX50-3A-R with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of CTX50-3A-R.
We are offering CTX50-3A-R for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of CTX50-3A-R

Packaging	Tape & Reel (TR)
Number of Coils	2
Inductance - Connected In Series	198.8µH
Inductance - Connected In Parallel	49.71µH
Tolerance	±25%
Current Rating - Parallel	1.56A
Current Rating - Series	780mA
Current Saturation - Parallel	1.32A
Current Saturation - Series	660mA
DC Resistance (DCR) - Parallel	171 mOhm Max
DC Resistance (DCR) - Series	686 mOhm Max
Shielding	Unshielded
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.550" L x 0.550" W (13.97mm x 13.97mm)
Height	0.190" (4.83mm)
Other Names	513-1739-2 CTX50-3A CTX50-3A-ND CTX50-3A-R-ND CTX503AR
