- Part Number

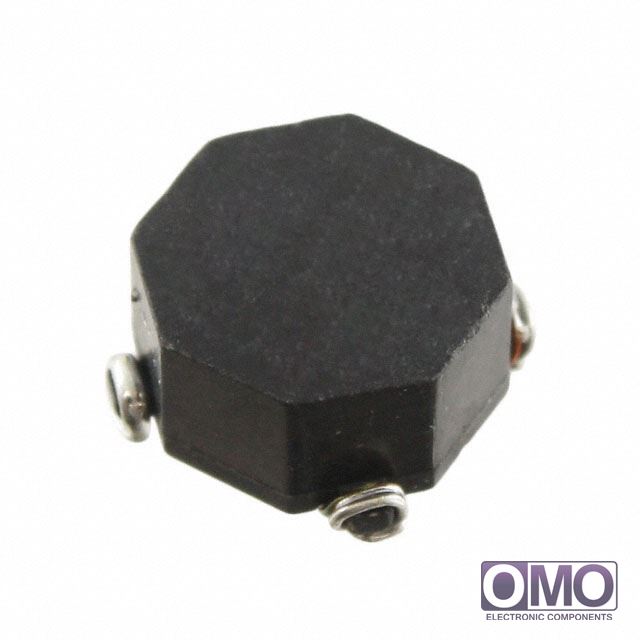

CTX5-4A-R
- Manufacturer
Eaton (formerly Cooper Bussmann)
- Description
- INDUCT ARRAY 2 COIL 4.26UH SMD
- Category
- Inductors, Coils, Chokes
- Family
- Arrays, Signal Transformers
- To learn about the specification of CTX5-4A-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add CTX5-4A-R with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of CTX5-4A-R.
- We are offering CTX5-4A-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CTX5-4A-R
| Packaging | Tape & Reel (TR) | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 17.05µH | |
| Inductance - Connected In Parallel | 4.26µH | |
| Tolerance | ±25% | |
| Current Rating - Parallel | 7.21A | |
| Current Rating - Series | 3.61A | |
| Current Saturation - Parallel | 6.43A | |
| Current Saturation - Series | 3.21A | |
| DC Resistance (DCR) - Parallel | 8.5 mOhm Max | |
| DC Resistance (DCR) - Series | 33.9 mOhm Max | |
| Shielding | Unshielded | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) | |
| Height | 0.250" (6.35mm) | |
| Other Names | 513-1742-2 CTX5-4A CTX5-4A-ND CTX5-4A-R-ND CTX54AR | |
| call me | [email protected] | |
