- Part Number

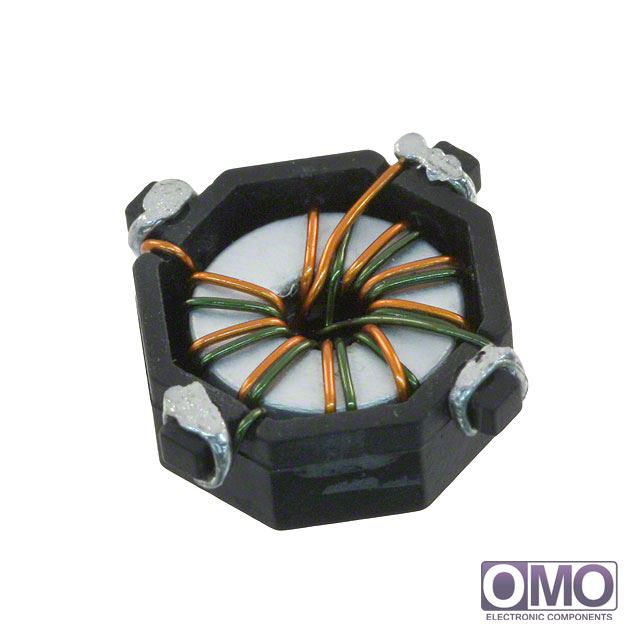

CTX5-1A-R
- Manufacturer
Eaton (formerly Cooper Bussmann)
- Description
- INDUCT ARRAY 2 COIL 4.7UH SMD
- Category
- Inductors, Coils, Chokes
- Family
- Arrays, Signal Transformers
- To learn about the specification of CTX5-1A-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add CTX5-1A-R with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of CTX5-1A-R.
- We are offering CTX5-1A-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CTX5-1A-R
| Packaging | Tape & Reel (TR) | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 18.8µH | |
| Inductance - Connected In Parallel | 4.7µH | |
| Tolerance | ±25% | |
| Current Rating - Parallel | 4.27A | |
| Current Rating - Series | 2.13A | |
| Current Saturation - Parallel | 3.75A | |
| Current Saturation - Series | 1.88A | |
| DC Resistance (DCR) - Parallel | 20 mOhm Max | |
| DC Resistance (DCR) - Series | 82 mOhm Max | |
| Shielding | Unshielded | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.450" L x 0.450" W (11.43mm x 11.43mm) | |
| Height | 0.165" (4.19mm) | |
| Other Names | 513-1811-2 CTX5-1A CTX5-1A-ND CTX5-1A-R-ND CTX51AR | |
| call me | [email protected] | |
