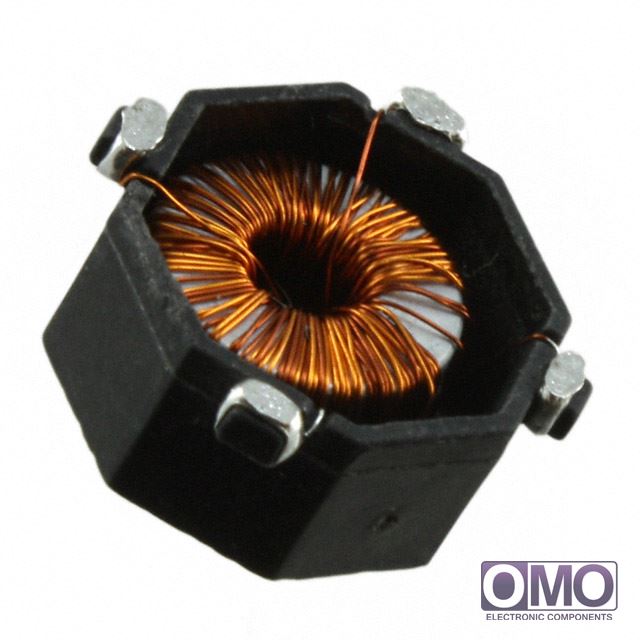

Part Number

CTX300-4A-R

Manufacturer

Description
INDUCT ARRAY 2 COIL 302.8UH SMD
Category
Inductors, Coils, Chokes
Family
Arrays, Signal Transformers

  • To learn about the specification of CTX300-4A-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CTX300-4A-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CTX300-4A-R.
  • We are offering CTX300-4A-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CTX300-4A-R
PackagingTape & Reel (TR)
Number of Coils2
Inductance - Connected In Series1.2mH
Inductance - Connected In Parallel302.8µH
Tolerance±25%
Current Rating - Parallel750mA
Current Rating - Series370mA
Current Saturation - Parallel760mA
Current Saturation - Series380mA
DC Resistance (DCR) - Parallel787 mOhm Max
DC Resistance (DCR) - Series3.148 Ohm Max
ShieldingUnshielded
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.550" L x 0.550" W (13.97mm x 13.97mm)
Height0.250" (6.35mm)
Other Names513-1732-2
CTX300-4A
CTX300-4A-ND
CTX300-4A-R-ND
CTX3004AR
