Part Number

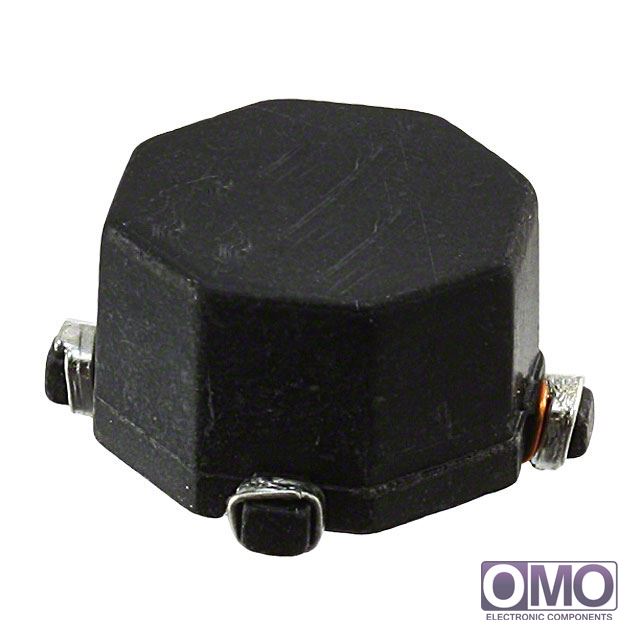

CTX2-2A-R

Manufacturer

Description
INDUCT ARRAY 2 COIL 1.98UH SMD
Category
Inductors, Coils, Chokes
Family
Arrays, Signal Transformers

  • To learn about the specification of CTX2-2A-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CTX2-2A-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CTX2-2A-R.
  • We are offering CTX2-2A-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CTX2-2A-R
PackagingTape & Reel (TR)
Number of Coils2
Inductance - Connected In Series7.9µH
Inductance - Connected In Parallel1.98µH
Tolerance±25%
Current Rating - Parallel6.74A
Current Rating - Series3.37A
Current Saturation - Parallel7.5A
Current Saturation - Series3.75A
DC Resistance (DCR) - Parallel9 mOhm Max
DC Resistance (DCR) - Series35 mOhm Max
ShieldingUnshielded
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.450" L x 0.450" W (11.43mm x 11.43mm)
Height0.235" (5.97mm)
Other NamesCTX2-2A
CTX2-2A-ND
