CTX100-1-52M-R

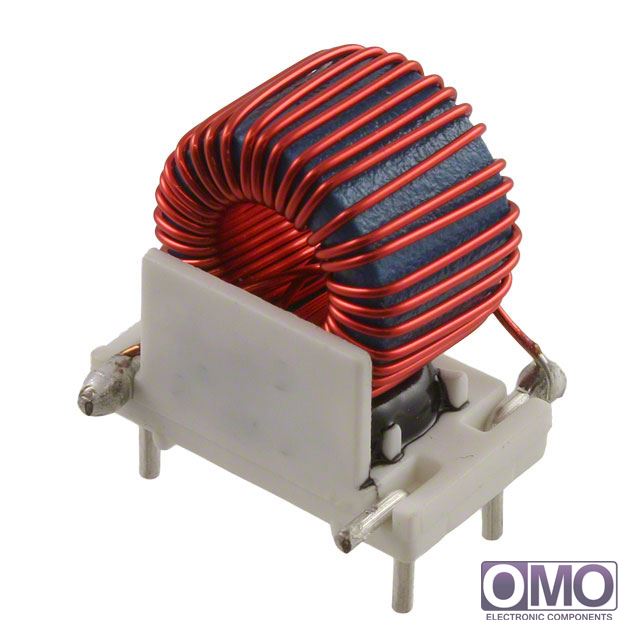

View larger image

Part Number

CTX100-1-52M-R

Manufacturer

Description
FIXED IND 100UH 2.5A 106 MOHM TH
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of CTX100-1-52M-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CTX100-1-52M-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CTX100-1-52M-R.
  • We are offering CTX100-1-52M-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CTX100-1-52M-R
PackagingBulk
TypeToroidal
Material - CorePowdered Iron
Inductance100µH
Tolerance±20%
Current Rating2.5A
Current - Saturation2.4A
ShieldingUnshielded
DC Resistance (DCR)106 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 75°C
Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension0.772" L x 0.634" W (19.60mm x 16.10mm)
Height - Seated (Max)0.776" (19.70mm)
Supplier Device Package-
Other Names513-1722
CTX100-1-52M
CTX100-1-52M-ND
CTX100-1-52M-R-ND
CTX100152MR
