- Part Number

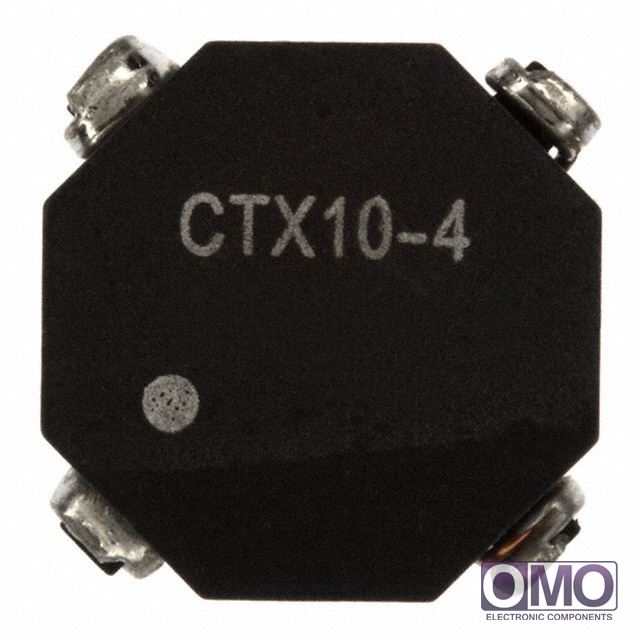

CTX10-4-R
- Manufacturer
Eaton (formerly Cooper Bussmann)
- Description
- INDUCT ARRAY 2 COIL 9.6UH SMD
- Category
- Inductors, Coils, Chokes
- Family
- Arrays, Signal Transformers
- To learn about the specification of CTX10-4-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add CTX10-4-R with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of CTX10-4-R.
- We are offering CTX10-4-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CTX10-4-R
| Packaging | Tape & Reel (TR) | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 38.42µH | |
| Inductance - Connected In Parallel | 9.6µH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 3.4A | |
| Current Rating - Series | 1.7A | |
| Current Saturation - Parallel | - | |
| Current Saturation - Series | - | |
| DC Resistance (DCR) - Parallel | 19 mOhm Max | |
| DC Resistance (DCR) - Series | 78 mOhm Max | |
| Shielding | Unshielded | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.550" L x 0.550" W (13.97mm x 13.97mm) | |
| Height | 0.250" (6.35mm) | |
| Other Names | 513-1002-2 CTX10-4 CTX104R | |
| call me | [email protected] | |
