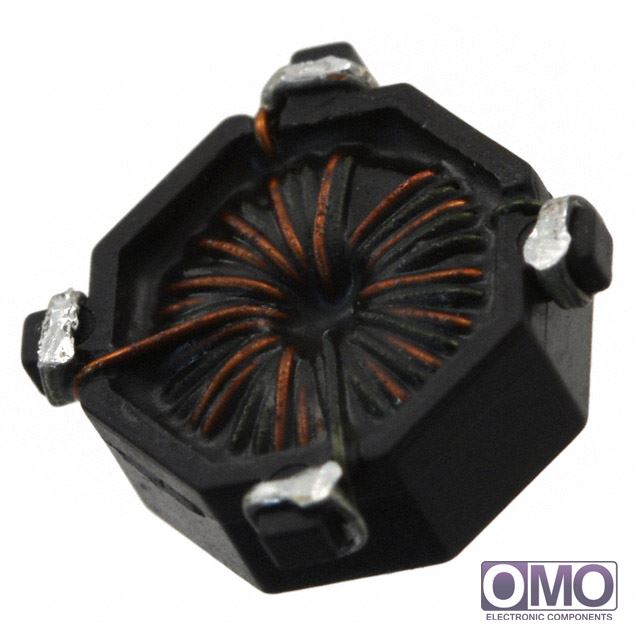

Part Number

CTX10-1-R

Manufacturer

Description
INDUCT ARRAY 2 COIL 10UH SMD
Category
Inductors, Coils, Chokes
Family
Arrays, Signal Transformers

  • To learn about the specification of CTX10-1-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CTX10-1-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CTX10-1-R.
  • We are offering CTX10-1-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CTX10-1-R
PackagingTape & Reel (TR)
Number of Coils2
Inductance - Connected In Series40µH
Inductance - Connected In Parallel10µH
Tolerance±20%
Current Rating - Parallel1.9A
Current Rating - Series950mA
Current Saturation - Parallel-
Current Saturation - Series-
DC Resistance (DCR) - Parallel44 mOhm Max
DC Resistance (DCR) - Series176 mOhm Max
ShieldingUnshielded
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.450" L x 0.450" W (11.43mm x 11.43mm)
Height0.165" (4.19mm)
Other Names513-1003-2
CTX10-1
CTX101R
