CTX06-14622

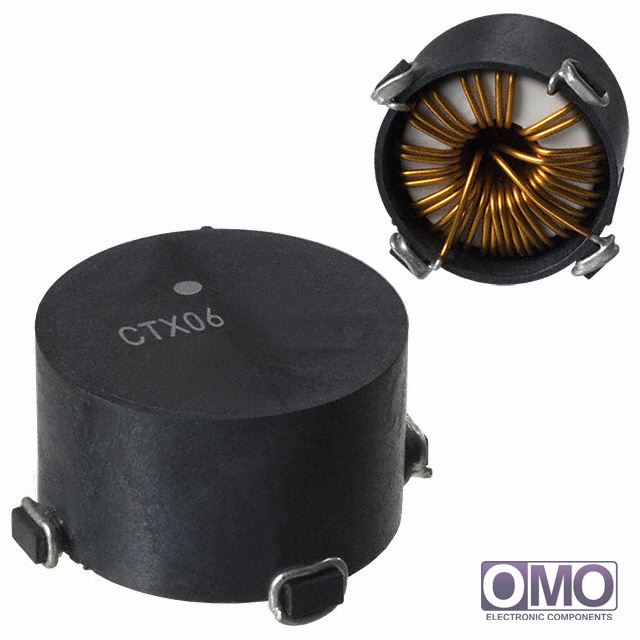

View larger image

Part Number

CTX06-14622

Manufacturer

Description
FIXED IND 22UH 8.5A 11.7 MOHM
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of CTX06-14622, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CTX06-14622 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CTX06-14622.
  • We are offering CTX06-14622 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CTX06-14622
PackagingBulk
TypeToroidal
Material - CorePowdered Iron
Inductance22µH
Tolerance±0.25%
Current Rating8.5A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)11.7 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 75°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.984" L x 0.984" W (25.00mm x 25.00mm)
Height - Seated (Max)0.484" (12.30mm)
Supplier Device Package-
Other Names513-1102
CTX0614622
