CTX01-16025

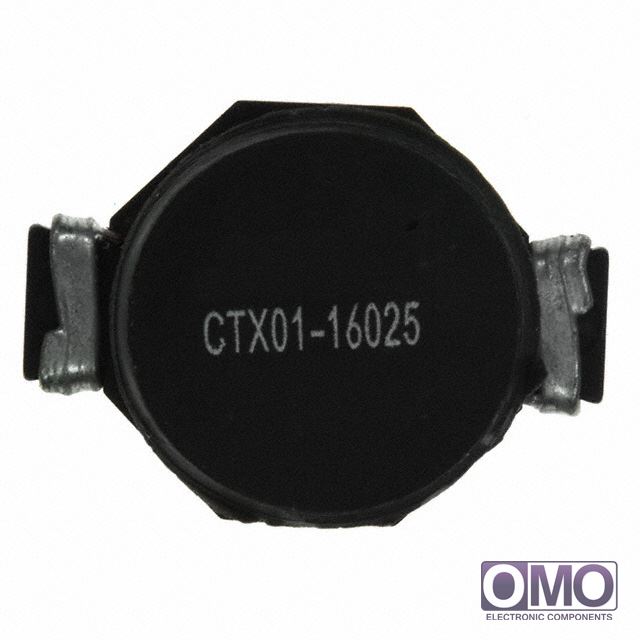

View larger image

Part Number

CTX01-16025

Manufacturer

Description
FIXED IND 120UH 2A 62 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of CTX01-16025, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CTX01-16025 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CTX01-16025.
  • We are offering CTX01-16025 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CTX01-16025
PackagingTape & Reel (TR)
TypeToroidal
Material - CorePowdered Iron
Inductance120µH
Tolerance±25%
Current Rating2A
Current - Saturation1.7A
ShieldingUnshielded
DC Resistance (DCR)62 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 150°C
Frequency - Test100kHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.697" L x 0.506" W (17.70mm x 12.85mm)
Height - Seated (Max)0.297" (7.55mm)
Supplier Device Package-
Other Names513-1539-2
CTX01-16025-R
CTX0116025
