CPFC85NP-WH07

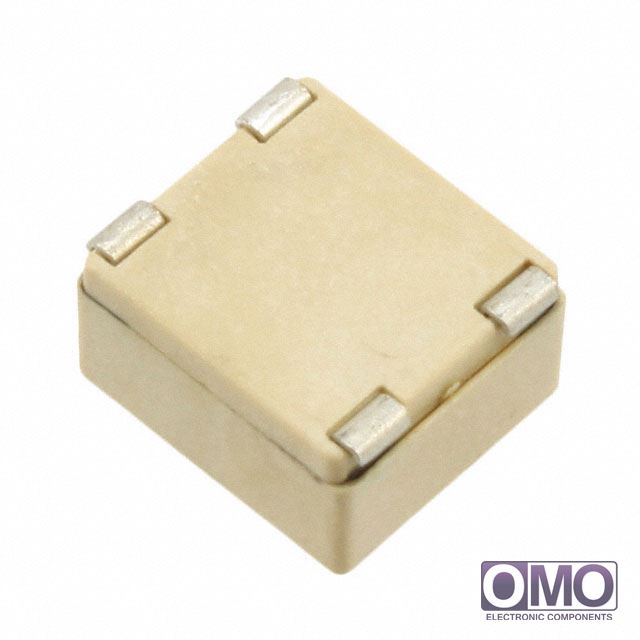

View larger image

Part Number

CPFC85NP-WH07

Manufacturer

Description
CHOKE COMMON MODE 4.0A SMD
Category
Filters
Family
Common Mode Chokes
  • To learn about the specification of CPFC85NP-WH07, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CPFC85NP-WH07 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CPFC85NP-WH07.
  • We are offering CPFC85NP-WH07 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CPFC85NP-WH07
PackagingTape & Reel (TR)
Filter TypeData, Signal Line
Number of Lines2
Inductance-
Current4A
DC Resistance (DCR)20 mOhm Max
Impedance1 kOhm
Operating Temperature-
Mounting TypeSurface Mount
Size / Dimension0.366" L x 0.323" W (9.30mm x 8.20mm)
Height (Max)0.217" (5.50mm)
Package / CaseHorizontal, 4 PC Pad
Other Names308-1564-2
CPFC85NPWH07
