CPFC85-1M15NP

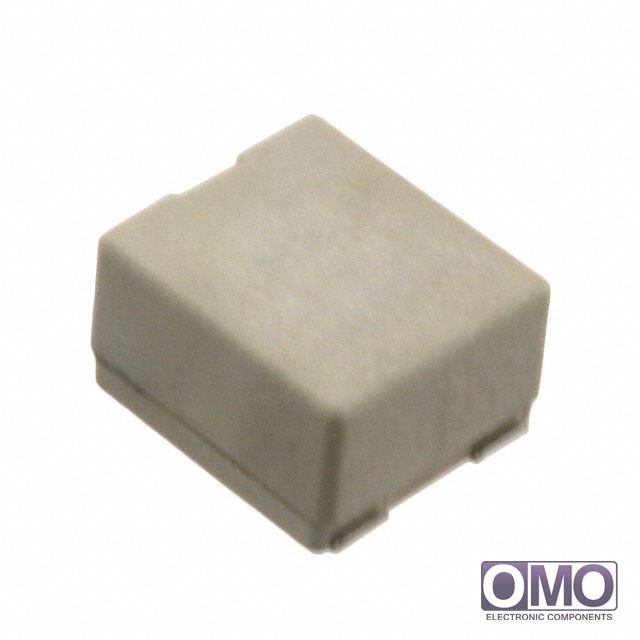

View larger image

Part Number

CPFC85-1M15NP

Manufacturer

Description
CHOKE COMMON MODE 4.7MH SMD
Category
Filters
Family
Common Mode Chokes
  • To learn about the specification of CPFC85-1M15NP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CPFC85-1M15NP with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CPFC85-1M15NP.
  • We are offering CPFC85-1M15NP for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CPFC85-1M15NP
PackagingTape & Reel (TR)
Filter TypeData, Signal Line
Number of Lines2
Inductance4.7mH
Current-
DC Resistance (DCR)2 Ohm Max
Impedance-
Operating Temperature-
Mounting TypeSurface Mount
Size / Dimension0.366" L x 0.323" W (9.30mm x 8.20mm)
Height (Max)0.217" (5.50mm)
Package / CaseHorizontal, 4 PC Pad
Other Names308-1565-2
CPFC851M15NP
CPFC85NP-1M15
