- Part Number

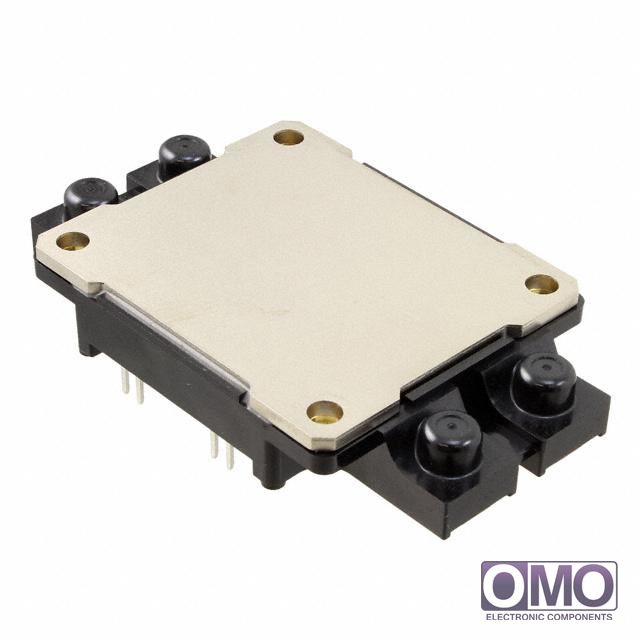

CM300EXS-24S
- Manufacturer
Powerex Inc.
- Description
- IGBT 1200V 300A 2270W MODULE
- Category
- Discrete Semiconductor Products
- Family
- IGBTs - Modules
- To learn about the specification of CM300EXS-24S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add CM300EXS-24S with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of CM300EXS-24S.
- We are offering CM300EXS-24S for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CM300EXS-24S
| IGBT Type | - | |
| Configuration | Single | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 300A | |
| Power - Max | 2270W | |
| Vce(on) (Max) @ Vge, Ic | 2.25V @ 15V, 300A | |
| Current - Collector Cutoff (Max) | 1mA | |
| Input Capacitance (Cies) @ Vce | 30nF @ 10V | |
| Input | Standard | |
| NTC Thermistor | Yes | |
| Mounting Type | * | |
| Package / Case | Module | |
| Supplier Device Package | Module | |
| Other Names | 835-1139 | |
| call me | [email protected] | |
