CM1683-02DE

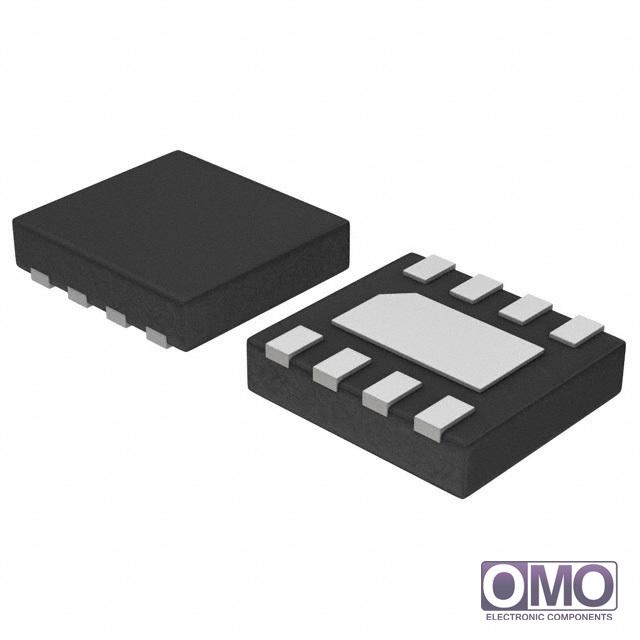

View larger image

Part Number

CM1683-02DE

Manufacturer

Description
2 CH. EMI FILTER W/ESD UDFN
Category
Filters
Family
EMI/RFI Filters (LC, RC Networks)
  • To learn about the specification of CM1683-02DE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CM1683-02DE with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CM1683-02DE.
  • We are offering CM1683-02DE for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CM1683-02DE
PackagingTape & Reel (TR)
TypeLow Pass
TechnologyLC (Pi)
Number of Channels2
Center / Cutoff Frequency31MHz (Cutoff)
Attenuation Value40dB @ 1GHz
Resistance - Channel (Ohms)0.75
Current30mA
ValuesL = 3nH, C = 100pF
ESD ProtectionYes
Filter Order3rd
ApplicationsData Lines for Mobile Devices
Package / Case8-UDFN Exposed Pad
Size / Dimension0.079" L x 0.079" W (2.00mm x 2.00mm)
Height0.026" (0.65mm)
Operating Temperature-40°C ~ 85°C
