CM1425-03CP

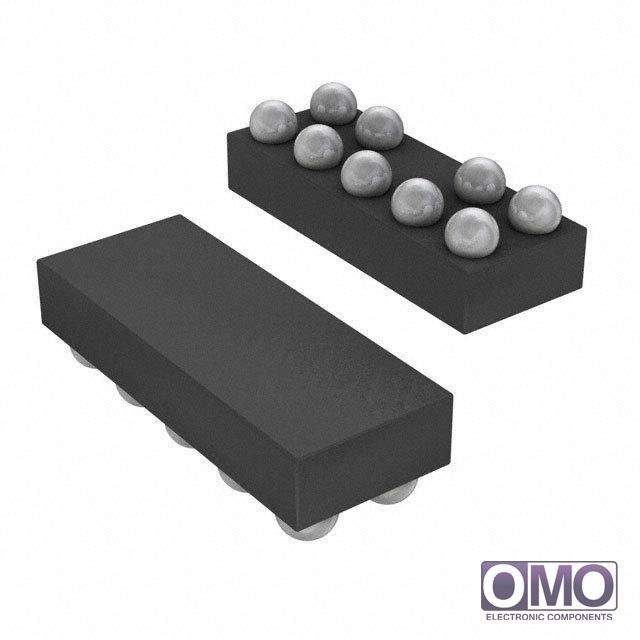

View larger image

Part Number

CM1425-03CP

Manufacturer

Description
IC EMI FILTER ARRAY 4CH 9CSP
Category
Filters
Family
EMI/RFI Filters (LC, RC Networks)
  • To learn about the specification of CM1425-03CP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CM1425-03CP with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CM1425-03CP.
  • We are offering CM1425-03CP for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CM1425-03CP
PackagingTape & Reel (TR)
TypeLow Pass
TechnologyRC (Pi)
Number of Channels4
Center / Cutoff Frequency86MHz (Cutoff)
Attenuation Value30dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms)100
Current-
ValuesR = 100 Ohms, C = 20pF
ESD ProtectionYes
Filter Order2nd
ApplicationsData Lines for Mobile Devices
Package / Case9-UFBGA, WLCSP
Size / Dimension0.097" L x 0.038" W (2.47mm x 0.97mm)
Height0.026" (0.65mm)
Operating Temperature-40°C ~ 85°C
