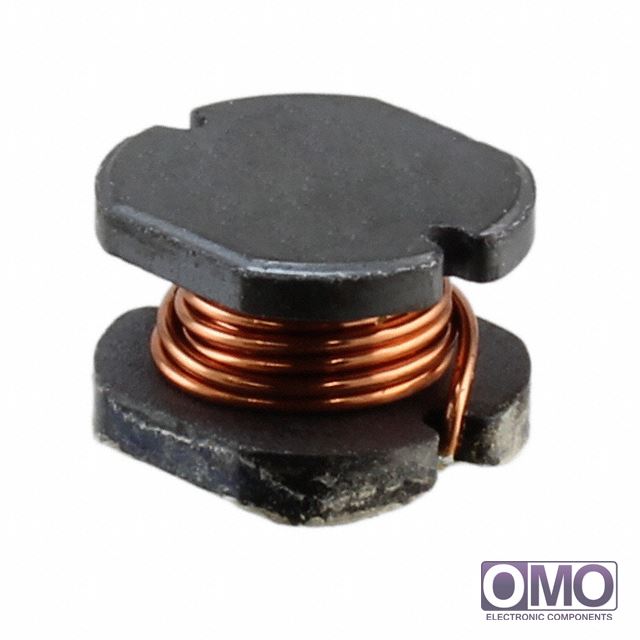

CD75NP-120KC

View larger image

Part Number

CD75NP-120KC

Manufacturer

Description
FIXED IND 12UH 2A 80 MOHM SMD
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
  • To learn about the specification of CD75NP-120KC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CD75NP-120KC with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CD75NP-120KC.
  • We are offering CD75NP-120KC for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CD75NP-120KC
PackagingCut Tape (CT)
Type-
Material - CoreFerrite
Inductance12µH
Tolerance±10%
Current Rating2A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)80 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Operating Temperature-40°C ~ 100°C
Frequency - Test2.52MHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Size / Dimension0.307" L x 0.276" W (7.80mm x 7.00mm)
Height - Seated (Max)0.217" (5.50mm)
Supplier Device Package-
Other Names308-1870-1
