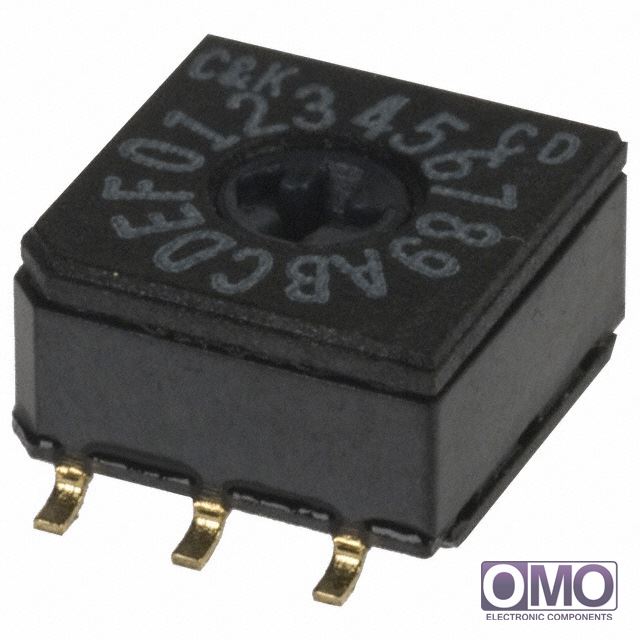

- Part Number
CD16CM0SB
- Manufacturer
C&K Components
- Description
- SWITCH ROTARY DIP HEX 16POS 20V
- Category
- Switches
- Family
- DIP Switches
- To learn about the specification of CD16CM0SB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add CD16CM0SB with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of CD16CM0SB.
- We are offering CD16CM0SB for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CD16CM0SB
| Packaging | Tube | |
| Circuit | Hexadecimal Complement | |
| Number of Positions | 16 | |
| Current Rating | 0.4VA | |
| Voltage Rating | 20VAC/DC | |
| Actuator Type | Rotary for Tool | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.168" (4.27mm) | |
| Mounting Type | Surface Mount | |
| Termination Style | Gull Wing | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | Process Sealed | |
| Body Material | Polyphenylene Sulfide (PPS) | |
| Length | 0.315" (8.00mm) | |
| Operating Temperature | -25°C ~ 85°C | |
| Mechanical Life | 20,000 Steps | |
| Electrical Life | 20,000 Steps | |
| Other Names | *CD16CM0SB CKN6159 | |
| call me | [email protected] | |
