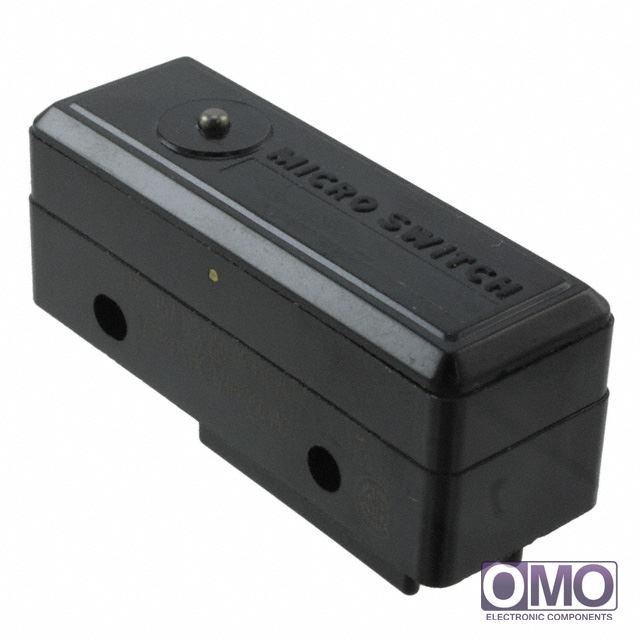

BZ-R

View larger image

Part Number

BZ-R

Manufacturer

Description
SW PLUNGER SPDT 15A SOLDER 125V
Category
Switches
Family
Snap Action, Limit Switches
  • To learn about the specification of BZ-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add BZ-R with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of BZ-R.
  • We are offering BZ-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of BZ-R
PackagingBulk
CircuitSPDT
Switch FunctionOn-Mom
Current Rating15A (AC)
Voltage Rating - AC125V
Voltage Rating - DC-
Actuator TypeRound (Pin Plunger)
Mounting TypeChassis Mount
Termination StyleSolder Lug
Ingress Protection-
Features-
Operating Force, Torque198.4 ~ 255gf
Release Force113gf
Pretravel0.012" (0.3mm)
Differential Travel0.0003" (0.008mm)
Overtravel0.005" (0.13mm)
Operating Position0.625" (15.9mm)
Mechanical Life20,000,000 Cycles
Electrical Life-
Operating Temperature-55°C ~ 85°C
Other Names480-4757
BZ-R-ND
BZR
