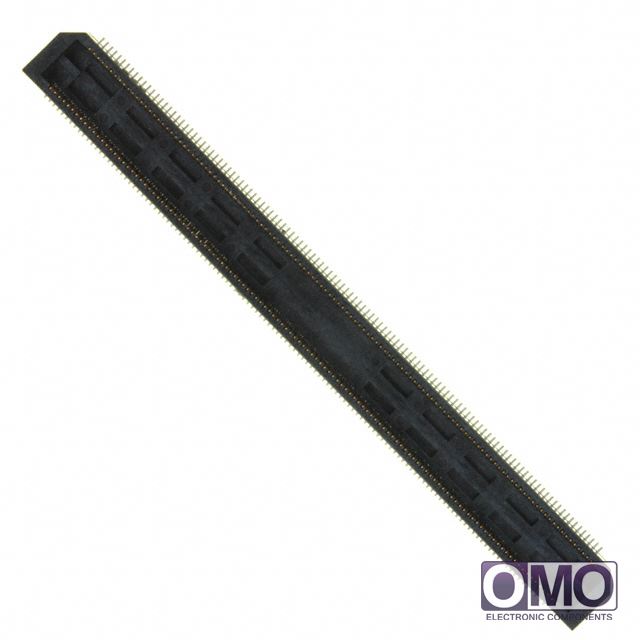

BTH-120-01-L-D-A

Part Number: BTH-120-01-L-D-A
Manufacturer: Samtec, Inc.
Description: CONN HDR 240POS 0.5MM SMD
Category: Connectors, Interconnects
Family: Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine

To learn about the specification of BTH-120-01-L-D-A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BTH-120-01-L-D-A with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of BTH-120-01-L-D-A.
We are offering BTH-120-01-L-D-A for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of BTH-120-01-L-D-A

Packaging	Tray
Connector Type	Header, Outer Shroud Contacts
Number of Positions	240
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10µin (0.25µm)
Mated Stacking Heights	5mm
Height Above Board	0.168" (4.27mm)
Other Names	BTH12001LDA
