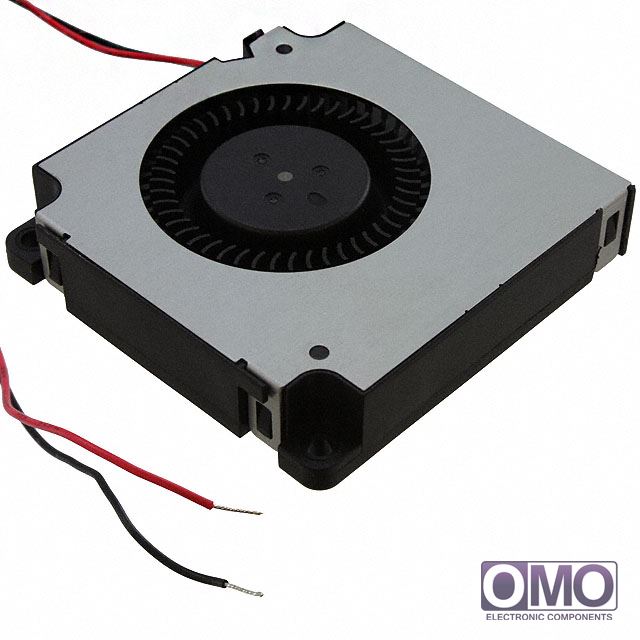

BFB0512HHA-C

View larger image

Part Number

BFB0512HHA-C

Manufacturer

Description
FAN BLOWER 50X10.3MM 12VDC WIRE
Category
Fans, Thermal Management
Family
DC Fans
  • To learn about the specification of BFB0512HHA-C, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add BFB0512HHA-C with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of BFB0512HHA-C.
  • We are offering BFB0512HHA-C for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of BFB0512HHA-C
Voltage - Rated12VDC
Size / DimensionSquare - 50mm L x 50mm H x 10.3mm W
Air Flow4.0 CFM (0.113m³/min)
Static Pressure0.790 in H2O (196.8 Pa)
Bearing TypeBall
Fan TypeBlower
Features-
Noise37.5 dB(A)
Power (Watts)1.92W
RPM5900 RPM
Termination2 Wire Leads
Ingress Protection-
Weight0.05 lb (22.68g)
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Current Rating0.160A
Voltage Range5 ~ 13.2VDC
Life Expectancy30000 hrs @ 40°C
Material - FramePlastic
Material - BladePlastic
Other Names603-1565
BFB0512HHAC
