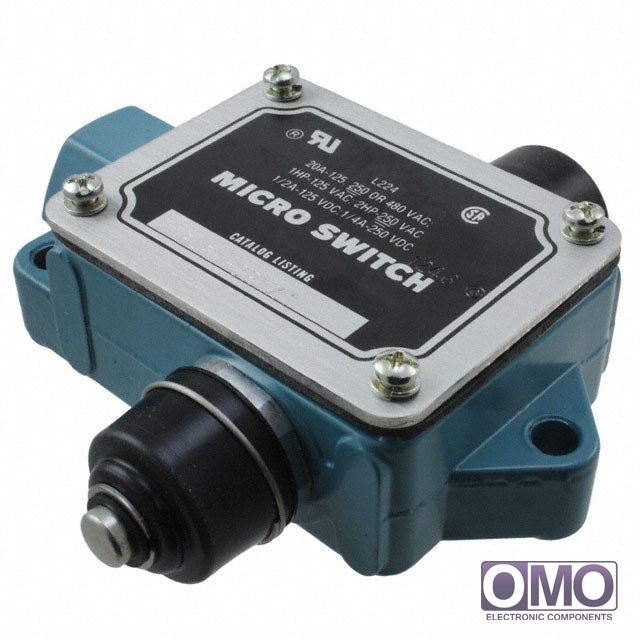

BAF1-3RNX1

View larger image

Part Number

BAF1-3RNX1

Manufacturer

Description
SW 1NC 1NO SPDT MAINTAINED 125V
Category
Switches
Family
Snap Action, Limit Switches
  • To learn about the specification of BAF1-3RNX1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add BAF1-3RNX1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of BAF1-3RNX1.
  • We are offering BAF1-3RNX1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of BAF1-3RNX1
PackagingBulk
CircuitSPDT
Switch FunctionOn-On
Current Rating20A (AC), 500mA (DC)
Voltage Rating - AC125V
Voltage Rating - DC125V
Actuator TypeRound (Pin Plunger)
Mounting TypeChassis Mount
Termination StyleScrew Terminal
Ingress Protection-
FeaturesReset Plunger on Bottom
Operating Force, Torque794gf
Release Force-
Pretravel0.094" (2.4mm)
Differential Travel-
Overtravel0.219" (5.6mm)
Operating Position2.094" (53.2mm)
Mechanical Life-
Electrical Life-
Operating Temperature-32°C ~ 71°C
Other Names480-4525
BAF1-3RNX1-ND
BAF13RNX1
