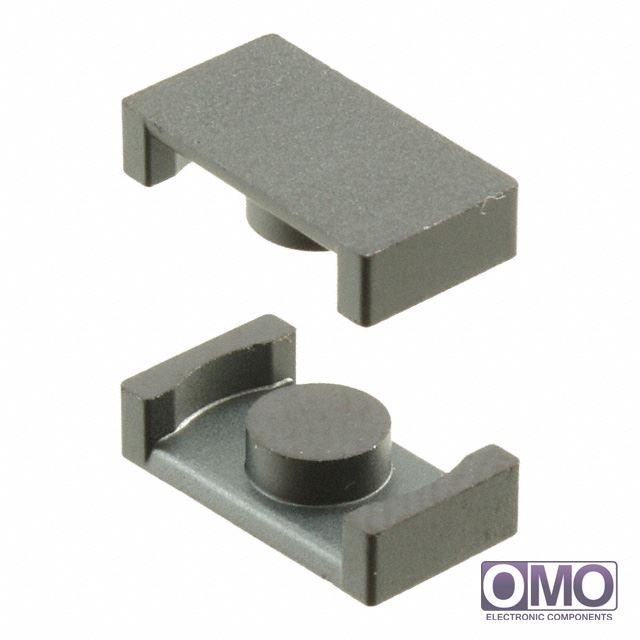

B65525JY38

To learn about the specification of B65525JY38, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B65525JY38 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of B65525JY38.
We are offering B65525JY38 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of B65525JY38

Core Type	ER
Inductance Factor (Al)	6.4µH
Tolerance	-30%, +40%
Gap	Ungapped
Effective Permeability (µe)	5600
Initial Permeability (µi)	10000
Material	T38
Core Factor (ΣI/A) mm^-1	1.1
Effective Length (le) mm	14.1
Effective Area (Ae) mm²	12.4
Minimum Core Cross Section (Amin) mm²	-
Effective Magnetic Volume (Ve) mm³	174
Finish	Uncoated
Supplier Device Package	ER 11 x 5
Height	2.50mm
Length	11.00mm
Width	6.00mm
Diameter	-
Other Names	495-5113 B65525J Y 38 B65525J0000Y038 B65525JY38-ND
