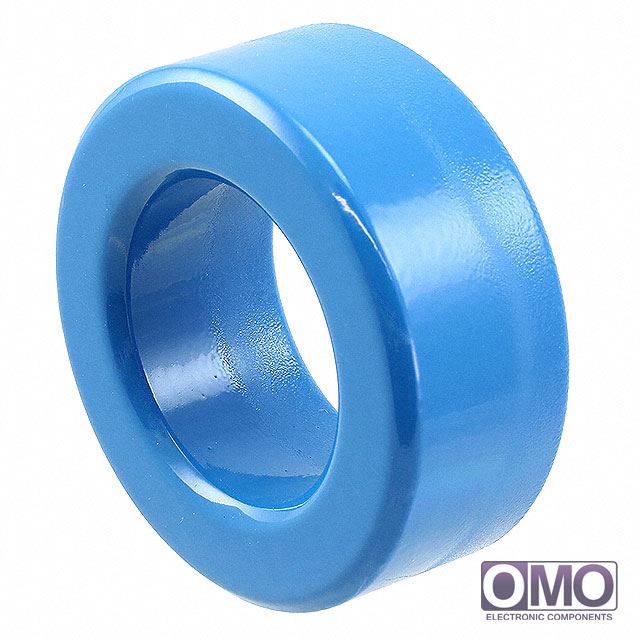

Part Number

B64290L699X830

Manufacturer

Description
FERRITE CORE TOROID 10.8UH N30
Category
Magnetics - Transformer, Inductor Components
Family
Ferrite Cores

  • To learn about the specification of B64290L699X830, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add B64290L699X830 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of B64290L699X830.
  • We are offering B64290L699X830 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of B64290L699X830
Core TypeToroid
Inductance Factor (Al)10.8µH
Tolerance±25%
GapUngapped
Effective Permeability (µe)-
Initial Permeability (µi)4300
MaterialN30
Core Factor (ΣI/A) mm-10.5
Effective Length (le) mm152.1
Effective Area (Ae) mm²305.9
Minimum Core Cross Section (Amin) mm²-
Effective Magnetic Volume (Ve) mm³46530
FinishEpoxy
Supplier Device PackageR 63 x 38 x 25
Height26.60mm
Length-
Width-
Diameter65.30mm
Other Names495-5088
