B64290L632X830

To learn about the specification of B64290L632X830, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B64290L632X830 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of B64290L632X830.
We are offering B64290L632X830 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of B64290L632X830

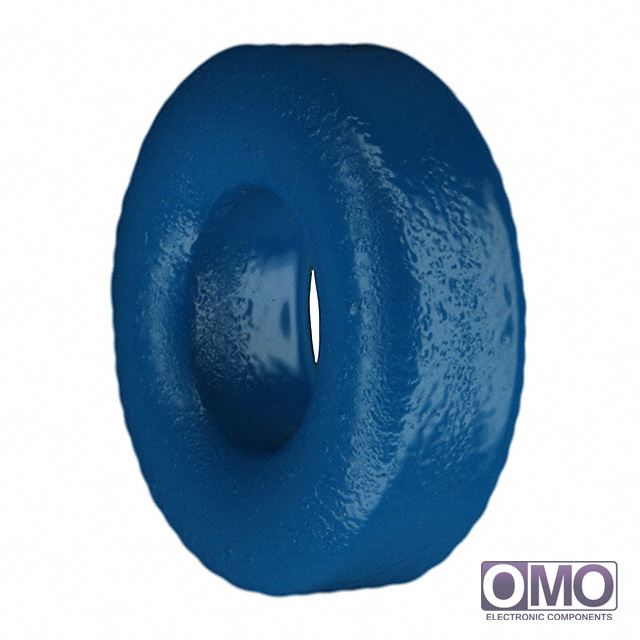

Core Type	Toroid
Inductance Factor (Al)	4.16µH
Tolerance	±25%
Gap	Ungapped
Effective Permeability (µe)	-
Initial Permeability (µi)	4300
Material	N30
Core Factor (ΣI/A) mm^-1	1.3
Effective Length (le) mm	43.55
Effective Area (Ae) mm²	33.63
Minimum Core Cross Section (Amin) mm²	-
Effective Magnetic Volume (Ve) mm³	1465
Finish	Epoxy
Supplier Device Package	R 20 x 10 x 7
Height	8.10mm
Length	-
Width	-
Diameter	21.20mm
Other Names	495-3864 B64290L 632X830 B64290L0632X830
