Part Number

B64290L45X830

Manufacturer

Description

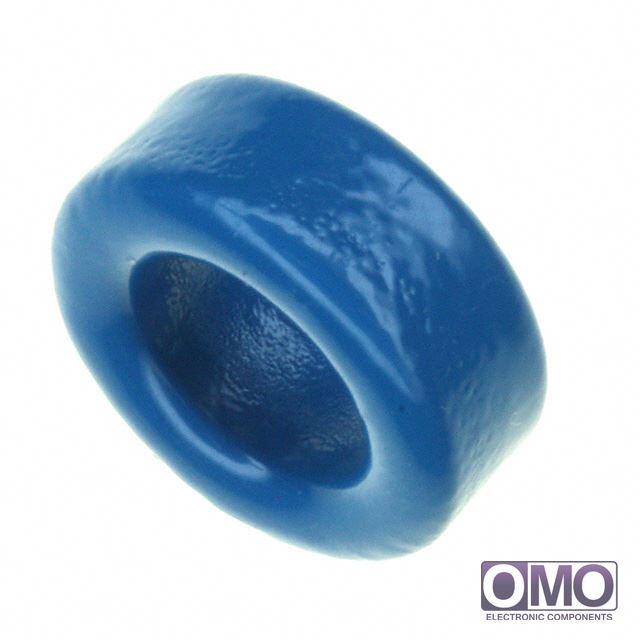

FERRITE CORE TOROID 2.77UH N30
Category
Magnetics - Transformer, Inductor Components
Family
Ferrite Cores

  • To learn about the specification of B64290L45X830, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add B64290L45X830 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of B64290L45X830.
  • We are offering B64290L45X830 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of B64290L45X830
Core TypeToroid
Inductance Factor (Al)2.77µH
Tolerance±25%
GapUngapped
Effective Permeability (µe)-
Initial Permeability (µi)4300
MaterialN30
Core Factor (ΣI/A) mm-11.95
Effective Length (le) mm38.52
Effective Area (Ae) mm²19.73
Minimum Core Cross Section (Amin) mm²-
Effective Magnetic Volume (Ve) mm³760
FinishEpoxy
Supplier Device PackageR 16 x 9.6 x 6.3
Height7.30mm
Length-
Width-
Diameter17.20mm
Other Names495-3855
B64290L 45X830
B64290L0045X830
