- Part Number

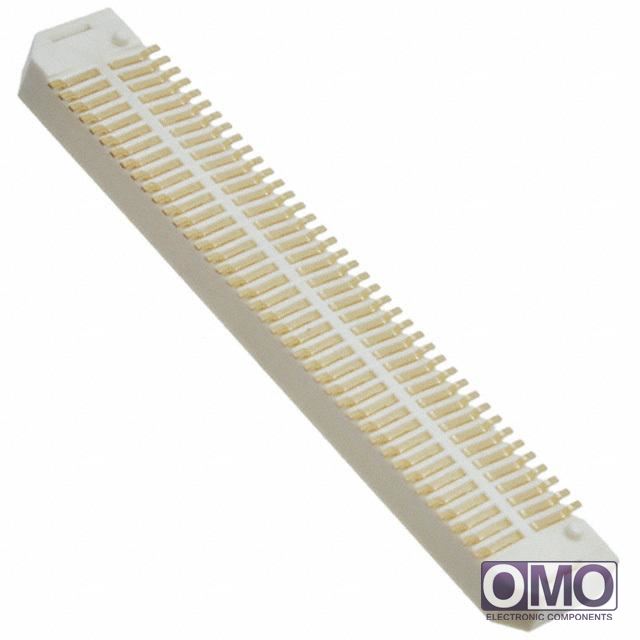

AXN480330S
- Manufacturer
Panasonic Electric Works
- Description
- CONN HEADER .8MM 80POS SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of AXN480330S, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add AXN480330S with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of AXN480330S.
- We are offering AXN480330S for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AXN480330S
| Packaging | Tube | |
| Connector Type | Header, Outer Shroud Contacts | |
| Number of Positions | 80 | |
| Pitch | 0.031" (0.80mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 3mm, 3.5mm, 6mm | |
| Height Above Board | 0.107" (2.72mm) | |
| Other Names | 255-4045-5 AXN480330S-ND | |
| call me | [email protected] | |
