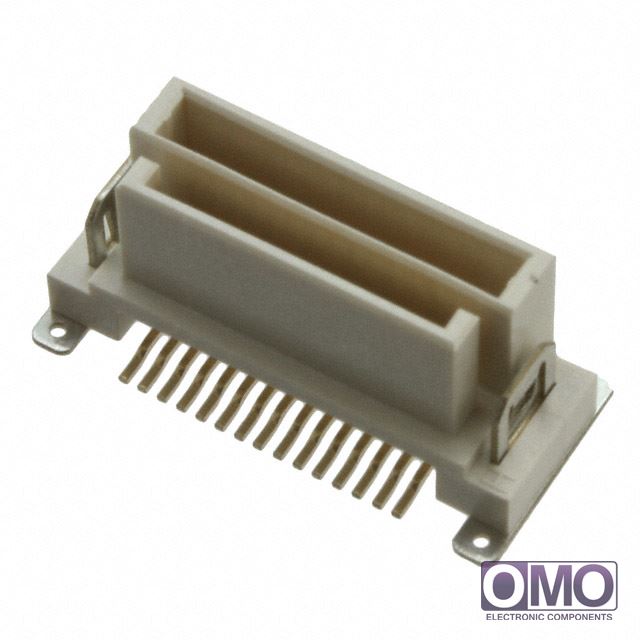

- Part Number
AXN1300115P
- Manufacturer
Panasonic Electric Works
- Description
- CONN HDR/SCKT .8MM 30POS SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of AXN1300115P, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add AXN1300115P with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of AXN1300115P.
- We are offering AXN1300115P for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AXN1300115P
| Packaging | Tape & Reel (TR) | |
| Connector Type | Header and Socket | |
| Number of Positions | 30 | |
| Pitch | 0.031" (0.80mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide, Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 11.5mm | |
| Height Above Board | 0.329" (8.35mm) | |
| Other Names | 255-3013-2 AXN1300115P-ND | |
| call me | [email protected] | |
