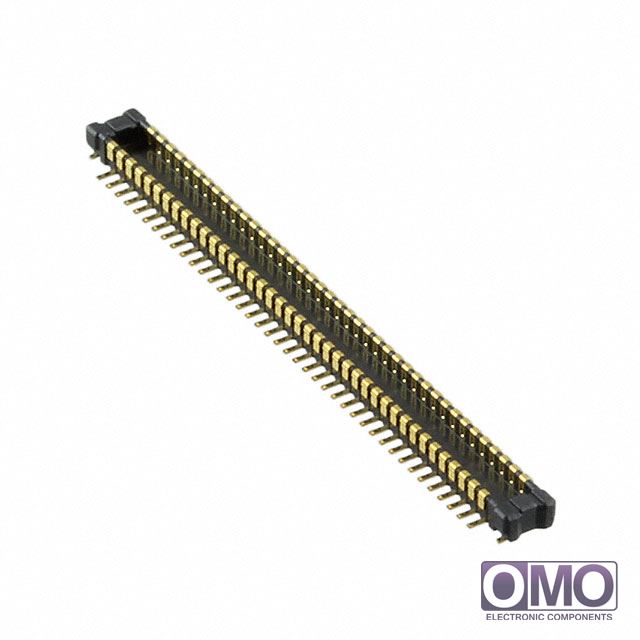

- Part Number
AXE680224
- Manufacturer
Panasonic Electric Works
- Description
- CONN HEADER .4MM 80 POS SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of AXE680224, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add AXE680224 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of AXE680224.
- We are offering AXE680224 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AXE680224
| Packaging | Tube | |
| Connector Type | Header, Outer Shroud Contacts | |
| Number of Positions | 80 | |
| Pitch | 0.016" (0.40mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 1mm | |
| Height Above Board | 0.026" (0.65mm) | |
| Other Names | 255-4251-5 | |
| call me | [email protected] | |
