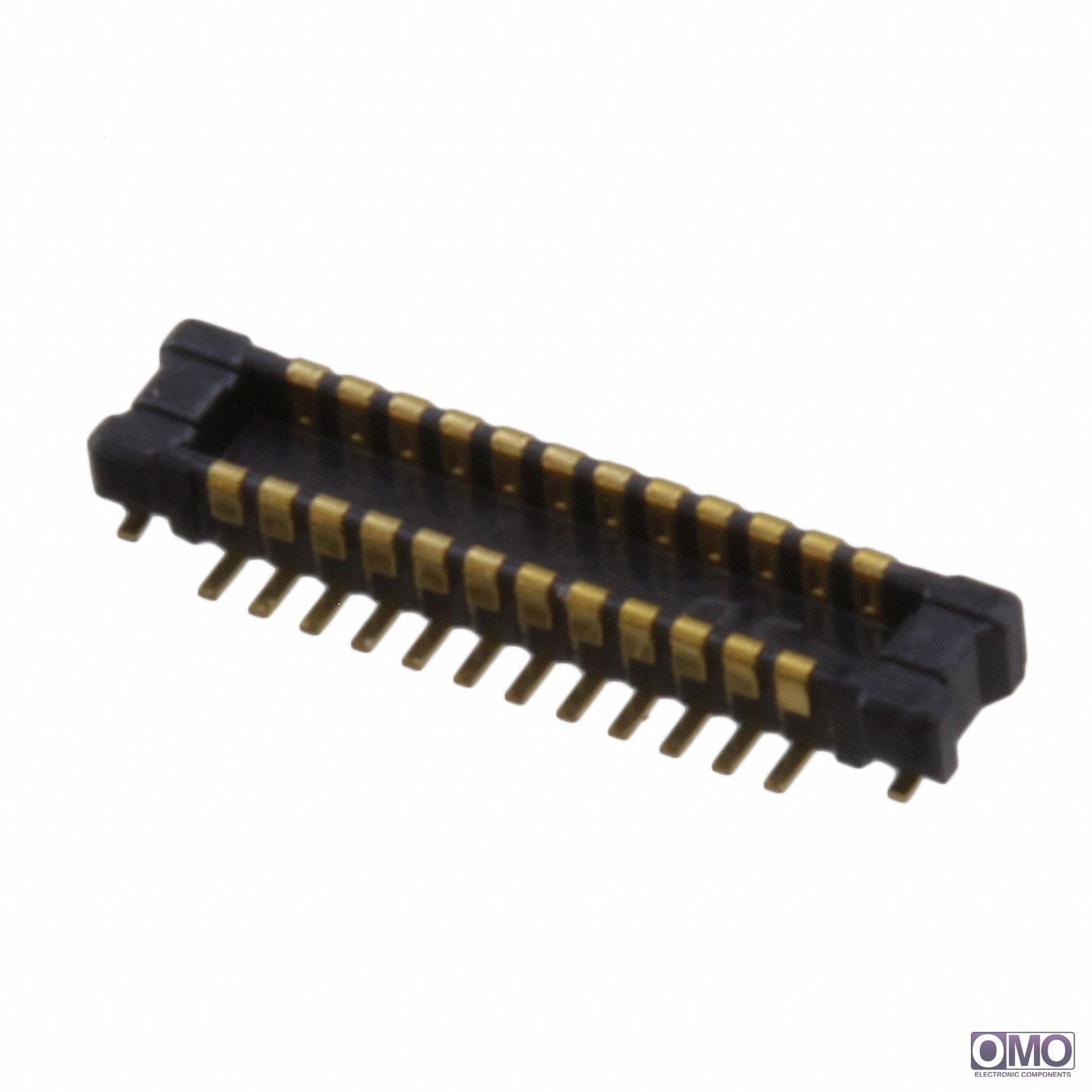

- Part Number
AXE624224
- Manufacturer
Panasonic Electric Works
- Description
- CONN HEADER .4MM 24 POS SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of AXE624224, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add AXE624224 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of AXE624224.
- We are offering AXE624224 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AXE624224
| Packaging | Cut Tape (CT) | |
| Connector Type | Header, Outer Shroud Contacts | |
| Number of Positions | 24 | |
| Pitch | 0.016" (0.40mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 1mm | |
| Height Above Board | 0.026" (0.65mm) | |
| Other Names | 255-4248-1 255-4248-5 255-4248-5-ND | |
| call me | [email protected] | |
