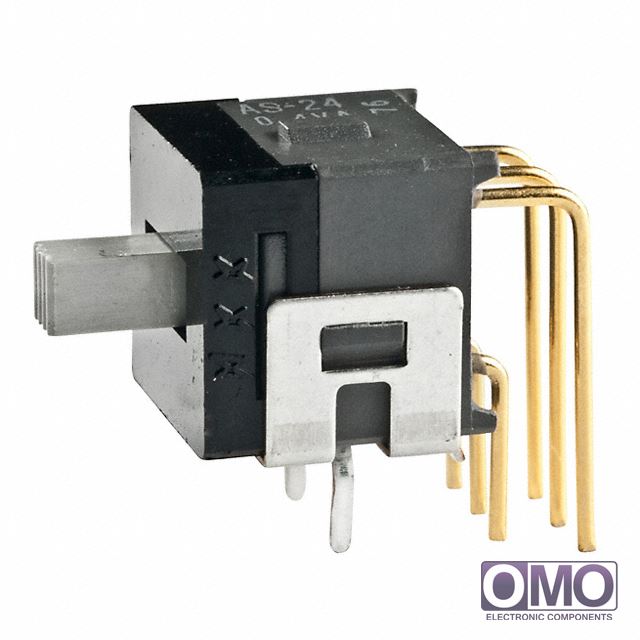

AS24CH

To learn about the specification of AS24CH, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AS24CH with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of AS24CH.
We are offering AS24CH for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of AS24CH

Packaging	Tray
Circuit	SP3T
Contact Timing	Non-Shorting (BBM)
Switch Function	On-On-On
Current Rating	0.4VA (AC/DC)
Voltage Rating - AC	28V
Voltage Rating - DC	28V
Actuator Type	Standard
Actuator Length	3.80mm
Contact Material	Phosphor Bronze
Contact Finish	Gold
Mounting Type	Through Hole, Right Angle
Termination Style	PC Pin
Features	Jumper needed to achieve triple throw
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Switch Travel	2.50mm
Operating Temperature	-30°C ~ 85°C
Mechanical Life	50,000 Cycles
Electrical Life	50,000 Cycles
Operating Force	260gf
Other Names	AS24CH-RO AS24CH-RO-ND
