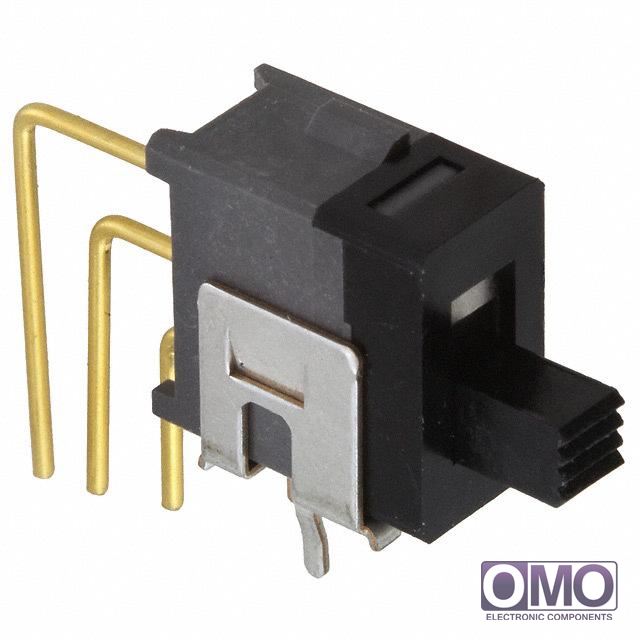

AS12CV/A

To learn about the specification of AS12CV/A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AS12CV/A with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of AS12CV/A.
We are offering AS12CV/A for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of AS12CV/A

Packaging	Tray
Circuit	SPDT
Contact Timing	Non-Shorting (BBM)
Switch Function	On-On
Current Rating	0.4VA (AC/DC)
Voltage Rating - AC	28V
Voltage Rating - DC	28V
Actuator Type	Standard
Actuator Length	3.80mm
Contact Material	Phosphor Bronze
Contact Finish	Gold
Mounting Type	Through Hole, Right Angle, Vertical
Termination Style	PC Pin
Features	Epoxy Sealed Terminals
Actuator Material	Polyamide (PA), Nylon, Glass Filled
Switch Travel	2.50mm
Operating Temperature	-30°C ~ 85°C
Mechanical Life	50,000 Cycles
Electrical Life	50,000 Cycles
Operating Force	260gf
Other Names	AS12CV/A-RO AS12CV/A-RO-ND AS12CVA
