- Part Number

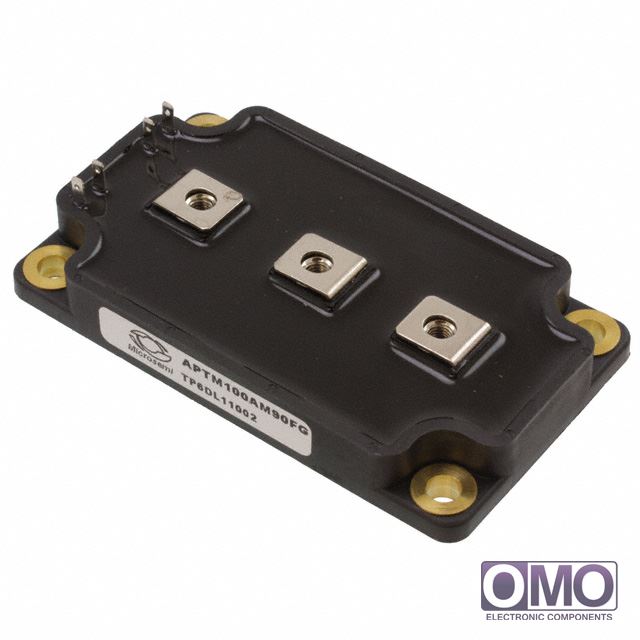

APTM100AM90FG
- Manufacturer
Microsemi Power Products
- Description
- MOSFET 2N-CH 1000V 78A SP6
- Category
- Discrete Semiconductor Products
- Family
- FETs - Arrays
- To learn about the specification of APTM100AM90FG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add APTM100AM90FG with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of APTM100AM90FG.
- We are offering APTM100AM90FG for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of APTM100AM90FG
| Packaging | Bulk | |
| FET Type | 2 N-Channel (Half Bridge) | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 1000V (1kV) | |
| Current - Continuous Drain (Id) @ 25°C | 78A | |
| Rds On (Max) @ Id, Vgs | 105 mOhm @ 39A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 10mA | |
| Gate Charge (Qg) @ Vgs | 744nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 20700pF @ 25V | |
| Power - Max | 1250W | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP6 | |
| Supplier Device Package | SP6 | |
| call me | [email protected] | |
