- Part Number

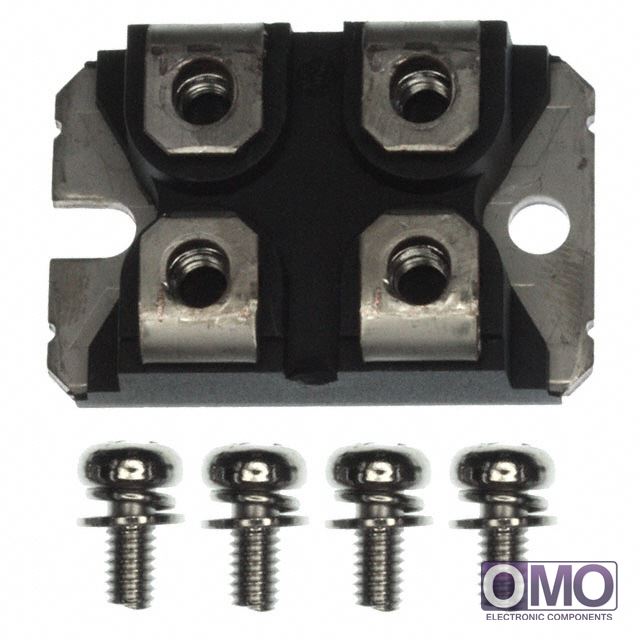

APL1001J
- Manufacturer
Microsemi Power Products
- Description
- MOSFET N-CH 1000V 18A SOT-227
- Category
- Discrete Semiconductor Products
- Family
- FETs - Single
- To learn about the specification of APL1001J, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add APL1001J with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of APL1001J.
- We are offering APL1001J for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of APL1001J
| Packaging | Tube | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 1000V (1kV) | |
| Current - Continuous Drain (Id) @ 25°C | 18A | |
| Rds On (Max) @ Id, Vgs | 600 mOhm @ 500mA, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 2.5mA | |
| Gate Charge (Qg) @ Vgs | - | |
| Input Capacitance (Ciss) @ Vds | 7200pF @ 25V | |
| Power - Max | 520W | |
| Mounting Type | Chassis Mount | |
| Package / Case | SOT-227-4, miniBLOC | |
| Supplier Device Package | ISOTOP® | |
| Other Names | APL1001JMI APL1001JMI-ND | |
| call me | [email protected] | |
