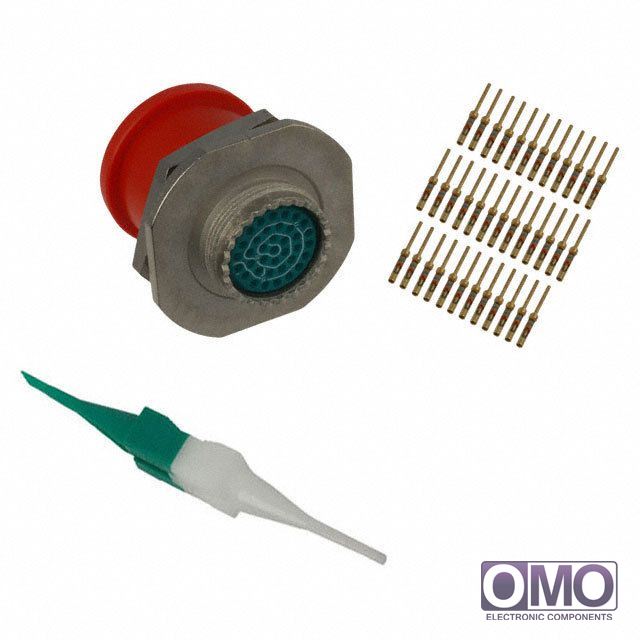

AL07FD15-35P(IP)

To learn about the specification of AL07FD15-35P(IP), please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AL07FD15-35P(IP) with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of AL07FD15-35P(IP).
We are offering AL07FD15-35P(IP) for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of AL07FD15-35P(IP)

Packaging	Bulk
Connector Type	Receptacle, Male Pins
Number of Positions	37
Shell Size - Insert	15-35
Shell Size, MIL	-
Mounting Type	Panel Mount, Bulkhead - Front Side Nut
Termination	Crimp
Fastening Type	Threaded
Orientation	N (Normal)
Ingress Protection	Fluid Resistant
Shell Material, Finish	Composite, Nickel Plated
Contact Finish	Gold
Features	Dust Cap, Shielded
Contact Finish Thickness	50µin (1.27µm)
Current Rating	-
Voltage - Rated	400VAC, 550VDC
Operating Temperature	-55°C ~ 125°C
Other Names	956-1029 956-1029-ND AL07FD1535PIP C91-611634-35P
