- Part Number

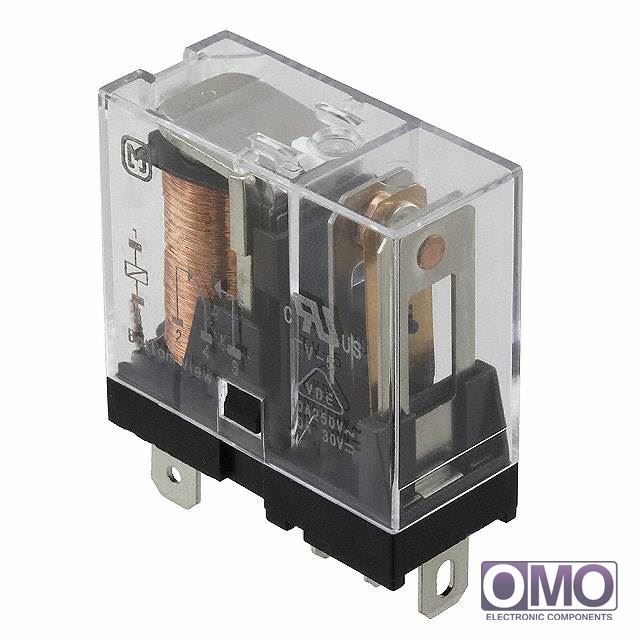

AHN12024
- Manufacturer
Panasonic Electric Works
- Description
- RELAY GEN PURPOSE SPDT 16A 24V
- Category
- Relays
- Family
- Power Relays, Over 2 Amps
- To learn about the specification of AHN12024, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add AHN12024 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of AHN12024.
- We are offering AHN12024 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AHN12024
| Packaging | Tube | |
| Relay Type | General Purpose | |
| Coil Type | Non Latching | |
| Coil Current | 22mA | |
| Coil Voltage | 24VDC | |
| Contact Form | SPDT (1 Form C) | |
| Contact Rating (Current) | 16A | |
| Switching Voltage | 250VAC, 30VDC - Max | |
| Turn On Voltage (Max) | 16.8 VDC | |
| Turn Off Voltage (Min) | 2.4 VDC | |
| Operate Time | 15ms | |
| Release Time | 5ms | |
| Features | - | |
| Mounting Type | Socketable | |
| Termination Style | Plug In | |
| Contact Material | Silver Nickel (AgNi) | |
| Coil Power | 530 mW | |
| Coil Resistance | 1.09 kOhms | |
| Operating Temperature | -40°C ~ 50°C | |
| Other Names | 255-4101-5 AHN12024-ND | |
| call me | [email protected] | |
