- Part Number

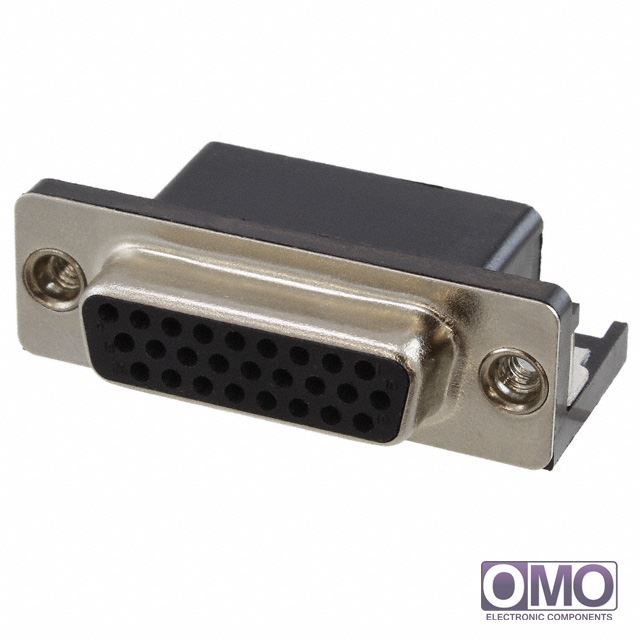

AHDF26A-KG-TAXB-R
- Manufacturer
ASSMANN WSW Components
- Description
- D-Sub Connector Receptacle, Female Sockets 26 Position Through Hole, Right Angle Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of AHDF26A-KG-TAXB-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add AHDF26A-KG-TAXB-R with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of AHDF26A-KG-TAXB-R.
- We are offering AHDF26A-KG-TAXB-R for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tray | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 26 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 2 (DA, A) High Density | |
| Contact Type | Signal | |
| Mounting Type | Through Hole, Right Angle | |
| Flange Feature | Housing/Shell (4-40) | |
| Termination | Solder | |
| Features | Board Lock | |
| Shell Material, Finish | Steel, Tin Plated | |
| Contact Finish | Gold | |
| Contact Finish Thickness | Flash | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | 250V | |
| Current Rating | 3A | |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | |
| Color | Black | |
| Other Names | AE11027 AHDF26A-KG-TAXB-R-ND | |
