AH16809-A

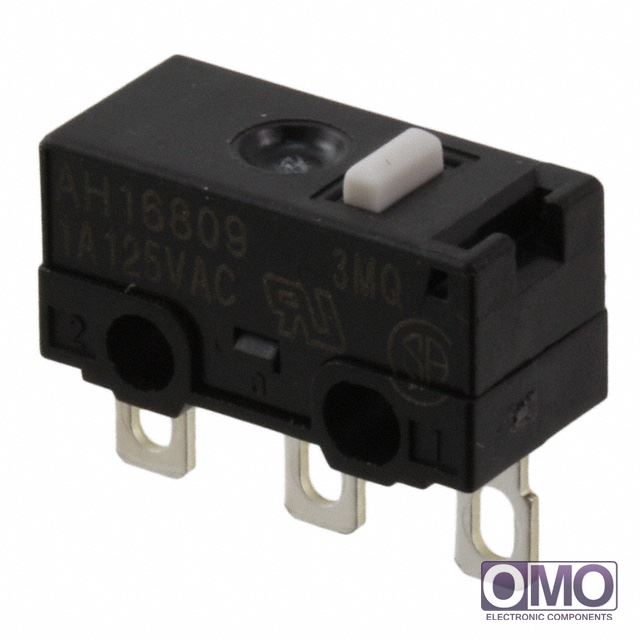

View larger image

Part Number

AH16809-A

Manufacturer

Description
SW MINI SPDT PLUNG SILV SLD 125V
Category
Switches
Family
Snap Action, Limit Switches
  • To learn about the specification of AH16809-A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add AH16809-A with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of AH16809-A.
  • We are offering AH16809-A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AH16809-A
PackagingTube
CircuitSPDT
Switch FunctionOn-Mom
Current Rating1A (AC/DC)
Voltage Rating - AC125V
Voltage Rating - DC30V
Actuator TypeRound (Pin Plunger)
Mounting TypeChassis Mount
Termination StyleSolder Lug
Ingress Protection-
Features-
Operating Force, Torque74gf
Release Force10gf
Pretravel0.020" (0.5mm)
Differential Travel0.005" (0.12mm)
Overtravel0.010" (0.25mm)
Operating Position0.217" (5.5mm)
Mechanical Life1,000,000 Cycles
Electrical Life30,000 Cycles
Operating Temperature-25°C ~ 85°C
Other Names255-4106-5
AH16809-A-ND
AH16809A
