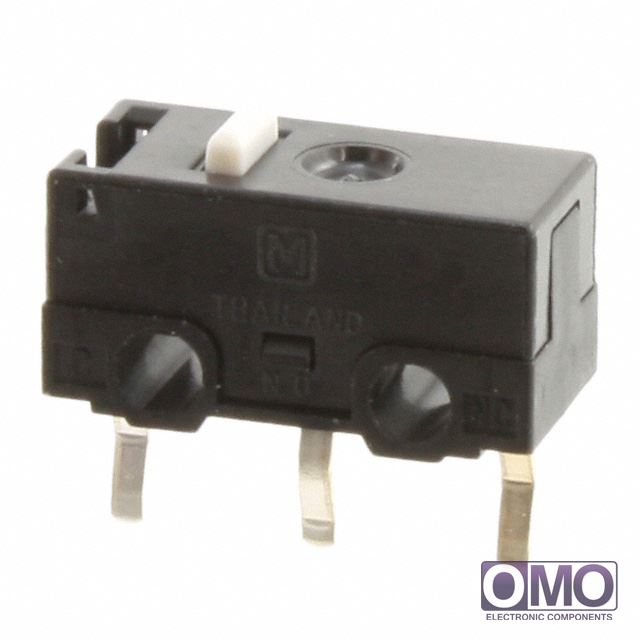

AH14609-A

View larger image

Part Number

AH14609-A

Manufacturer

Description
SW MINI SPDT PLUNG SILV PCB 125V
Category
Switches
Family
Snap Action, Limit Switches
  • To learn about the specification of AH14609-A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add AH14609-A with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of AH14609-A.
  • We are offering AH14609-A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AH14609-A
PackagingTube
CircuitSPDT
Switch FunctionOn-Mom
Current Rating3A (AC), 2A (DC)
Voltage Rating - AC125V
Voltage Rating - DC30V
Actuator TypeRound (Pin Plunger)
Mounting TypeThrough Hole
Termination StylePC Pin
Ingress Protection-
Features-
Operating Force, Torque150gf
Release Force20gf
Pretravel0.020" (0.5mm)
Differential Travel0.005" (0.12mm)
Overtravel0.010" (0.25mm)
Operating Position0.217" (5.5mm)
Mechanical Life500,000 Cycles
Electrical Life30,000 Cycles
Operating Temperature-25°C ~ 85°C
Other Names255-3534-5
AH14609-A-ND
AH14609A
