- Part Number

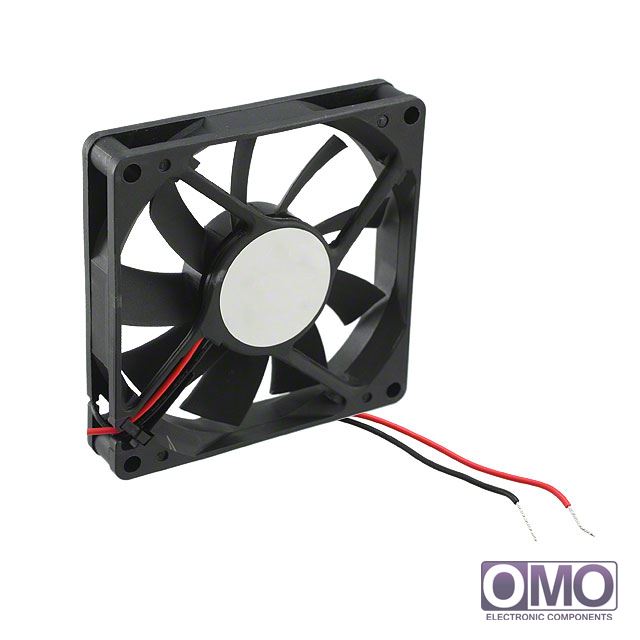

AFB0812HB
- Manufacturer
Delta Electronics Groups Fans
- Description
- FAN AXIAL 80X15MM 12VDC WIRE
- Category
- Fans, Thermal Management
- Family
- DC Fans
- To learn about the specification of AFB0812HB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add AFB0812HB with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of AFB0812HB.
- We are offering AFB0812HB for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AFB0812HB
| Voltage - Rated | 12VDC | |
| Size / Dimension | Square - 80mm L x 80mm H x 15mm W | |
| Air Flow | 33.5 CFM (0.949m³/min) | |
| Static Pressure | 0.138 in H2O (34.3 Pa) | |
| Bearing Type | Ball | |
| Fan Type | Tubeaxial | |
| Features | - | |
| Noise | 34 dB(A) | |
| Power (Watts) | 1.68W | |
| RPM | 3100 RPM | |
| Termination | 2 Wire Leads | |
| Ingress Protection | - | |
| Weight | 0.128 lb (58.06g) | |
| Operating Temperature | - | |
| Current Rating | 0.140A | |
| Voltage Range | 7 ~ 13.8VDC | |
| Life Expectancy | - | |
| Material - Frame | Plastic | |
| Material - Blade | Plastic | |
| Other Names | 603-1182 | |
| call me | [email protected] | |
