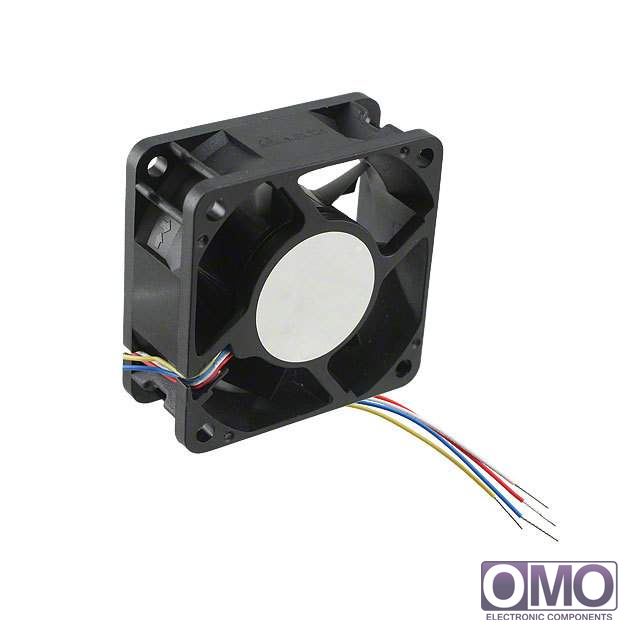

AFB0648EH-TP27

To learn about the specification of AFB0648EH-TP27, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AFB0648EH-TP27 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of AFB0648EH-TP27.
We are offering AFB0648EH-TP27 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of AFB0648EH-TP27

Voltage - Rated	48VDC
Size / Dimension	Square - 60mm L x 60mm H x 25.4mm W
Air Flow	38.3 CFM (1.09m³/min)
Static Pressure	0.544 in H2O (135.5 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	46.5 dB(A)
Power (Watts)	6.72W
RPM	6800 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	0.176 lb (79.83g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.140A
Voltage Range	36 ~ 60VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	603-1197 AFB0648EHTP27
