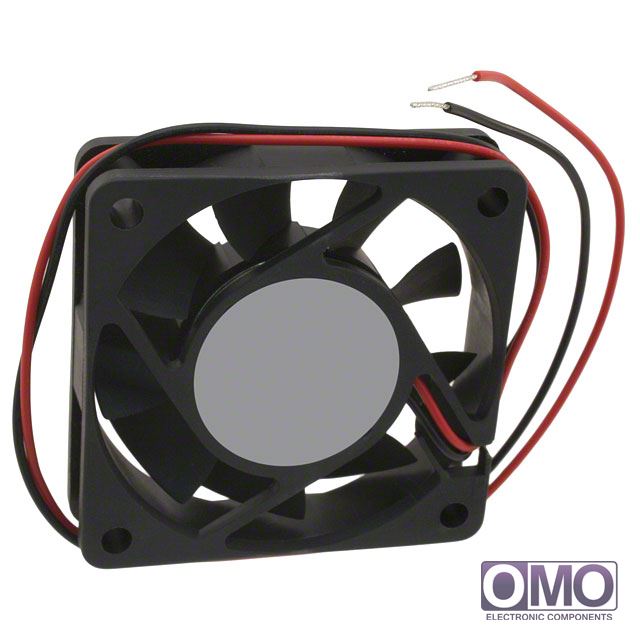

AFB0612HB

View larger image

Part Number

AFB0612HB

Manufacturer

Description
FAN AXIAL 60X15MM 12VDC WIRE
Category
Fans, Thermal Management
Family
DC Fans
  • To learn about the specification of AFB0612HB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add AFB0612HB with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of AFB0612HB.
  • We are offering AFB0612HB for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AFB0612HB
Voltage - Rated12VDC
Size / DimensionSquare - 60mm L x 60mm H x 15mm W
Air Flow15.4 CFM (0.435m³/min)
Static Pressure0.155 in H2O (38.6 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise32 dB(A)
Power (Watts)1.20W
RPM4000 RPM
Termination2 Wire Leads
Ingress Protection-
Weight0.097 lb (44g)
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Current Rating0.100A
Voltage Range7 ~ 13.8VDC
Life Expectancy70000 hrs @ 40°C
Material - FramePlastic
Material - BladePlastic
Other Names603-1526
