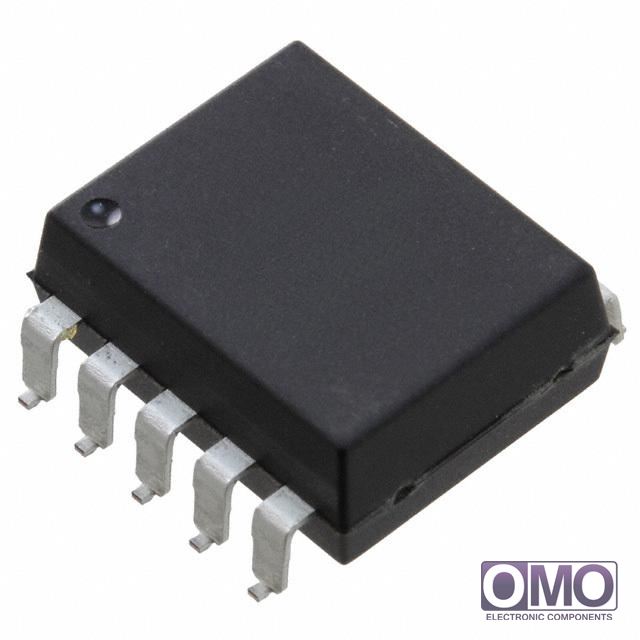

ACNV2601-300E

View larger image

Part Number

ACNV2601-300E

Manufacturer

Description
OPTOISO 7.5KV OPEN COLL 10DIP GW
Category
Isolators
Family
Optoisolators - Logic Output
  • To learn about the specification of ACNV2601-300E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add ACNV2601-300E with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of ACNV2601-300E.
  • We are offering ACNV2601-300E for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of ACNV2601-300E
PackagingTube
Number of Channels1
Inputs - Side 1/Side 21/0
Voltage - Isolation7500Vrms
Common Mode Transient Immunity (Min)20kV/µs
Input TypeDC
Output TypeOpen Collector, Schottky Clamped
Current - Output / Channel50mA
Data Rate10MBd
Propagation Delay tpLH / tpHL (Max)80ns, 80ns
Rise / Fall Time (Typ)25ns, 10ns
Voltage - Forward (Vf) (Typ)1.64V
Current - DC Forward (If) (Max)20mA
Voltage - Supply4.5 V ~ 5.5 V
Operating Temperature-40°C ~ 105°C
Mounting TypeSurface Mount
Package / Case10-SMD, Gull Wing
Supplier Device Package10-DIP Gull Wing
Other Names516-2888
ACNV2601-300E-ND
