- Part Number

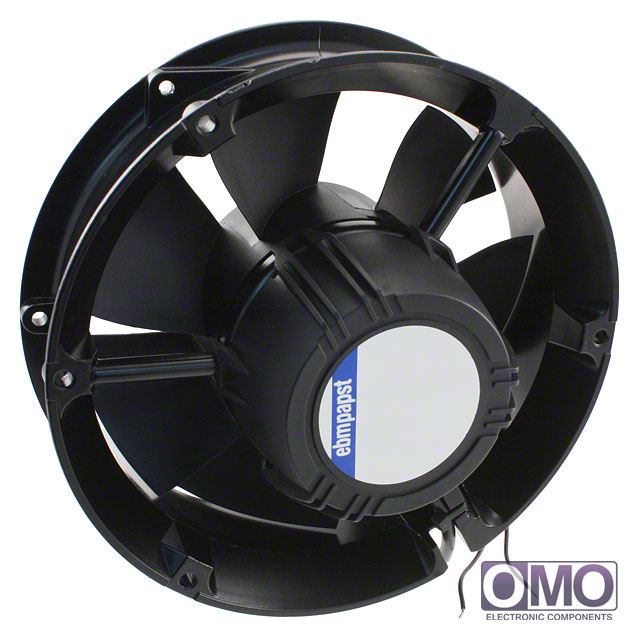

AC6200NM
- Manufacturer
ebm-papst Inc.
- Description
- FAN AXIAL 172X51MM 85/265VAC
- Category
- Fans, Thermal Management
- Family
- AC Fans
- To learn about the specification of AC6200NM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add AC6200NM with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of AC6200NM.
- We are offering AC6200NM for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AC6200NM
| Type | EC (Electronic Commutation) | |
| Voltage - Rated | 115VAC | |
| Size / Dimension | Round - 172mm Dia x 51mm W | |
| Air Flow | 206.0 CFM (5.83m³/min) | |
| Static Pressure | - | |
| Bearing Type | Ball | |
| Fan Type | Tubeaxial | |
| Features | - | |
| Noise | 50 dB(A) | |
| Power (Watts) | 14.0W | |
| RPM | 2850 RPM | |
| Termination | 2 Wire Leads | |
| Ingress Protection | - | |
| Operating Temperature | -4 ~ 158°F (-20 ~ 70°C) | |
| Weight | 2 lbs (907.2g) | |
| Current Rating | - | |
| Voltage Range | 85 ~ 265VAC | |
| Life Expectancy | 80000 hrs @ 40°C | |
| Material - Frame | Aluminum | |
| Material - Blade | Polyamide (PA), Fiberglass Reinforced | |
| Other Names | 381-2286 | |
| call me | [email protected] | |
