Part Number

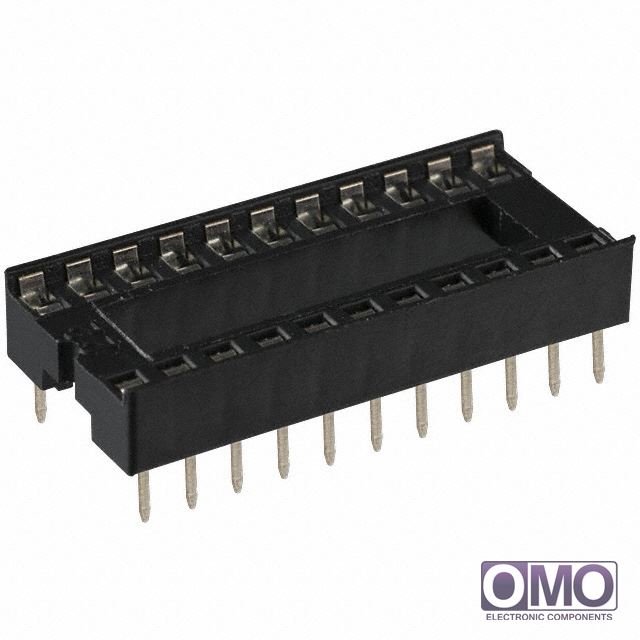

A22-LC-T2

Manufacturer

Description
CONN IC DIP SOCKET 22POS TIN
Category
Connectors, Interconnects
Family
Sockets for ICs, Transistors

  • To learn about the specification of A22-LC-T2, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add A22-LC-T2 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of A22-LC-T2.
  • We are offering A22-LC-T2 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of A22-LC-T2
PackagingTube
TypeDIP, 0.4" (10.16mm) Row Spacing
Number of Positions or Pins (Grid)22 (2 x 11)
Pitch - Mating0.100" (2.54mm)
Contact Finish - MatingTin
Contact Finish Thickness - Mating60µin (1.52µm)
Contact Material - MatingPhosphor Bronze
Mounting TypeThrough Hole
FeaturesOpen Frame
TerminationSolder
Pitch - Post0.100" (2.54mm)
Contact Finish - PostTin
Contact Finish Thickness - Post60µin (1.52µm)
Contact Material - PostPhosphor Bronze
Housing MaterialPolybutylene Terephthalate (PBT)
Operating Temperature-55°C ~ 85°C
Termination Post Length0.124" (3.15mm)
Material Flammability RatingUL94 V-0
Current Rating1A
Contact Resistance30 mOhm
Other NamesA22-LC-T2-R
A22LCT2R
AE10264
AE8922
AE8922-ND
