- Part Number
A-HDF15-HOOD-WP
- Manufacturer
ASSMANN WSW Components
- Description

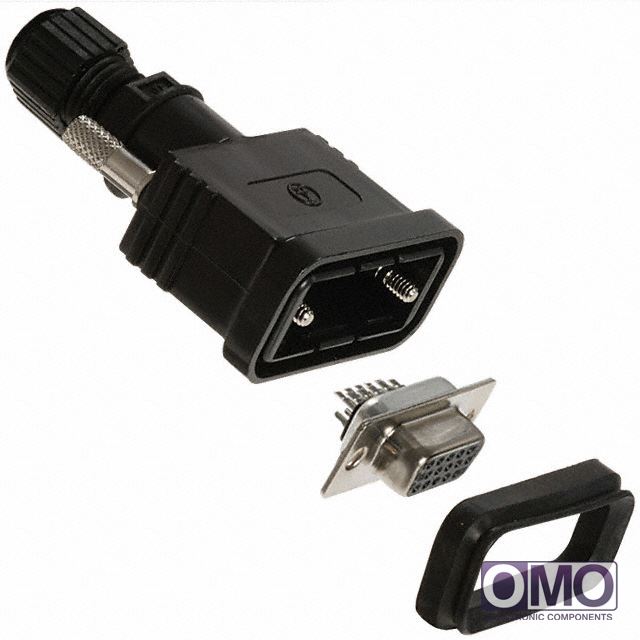

- D-Sub Connector Receptacle, Female Sockets 15 Position Free Hanging (In-Line) Solder Cup
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of A-HDF15-HOOD-WP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add A-HDF15-HOOD-WP with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of A-HDF15-HOOD-WP.
- We are offering A-HDF15-HOOD-WP for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tray | |
| Connector Style | D-Sub, High Density | |
| Connector Type | Receptacle, Female Sockets | |
| Number of Positions | 15 | |
| Number of Rows | 3 | |
| Shell Size, Connector Layout | 1 (DE, E) High Density | |
| Contact Type | Signal | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Cable Side; Male Jackscrew | |
| Termination | Solder Cup | |
| Features | Backshell, Gasket, Strain Relief | |
| Shell Material, Finish | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -20°C ~ 60°C | |
| Voltage Rating | - | |
| Current Rating | - | |
| Housing Material | Acrylonitrile Butadiene Styrene (ABS) | |
| Color | Black | |
| Other Names | A-HDF 15-HOOD-WP-R A-HDF15-HOOD-WP-R AE10120 AHDF15HOODWPR HDF15-HOOD-WP | |
