- Part Number
A-DS-15-AA-WP
- Manufacturer
ASSMANN WSW Components
- Description

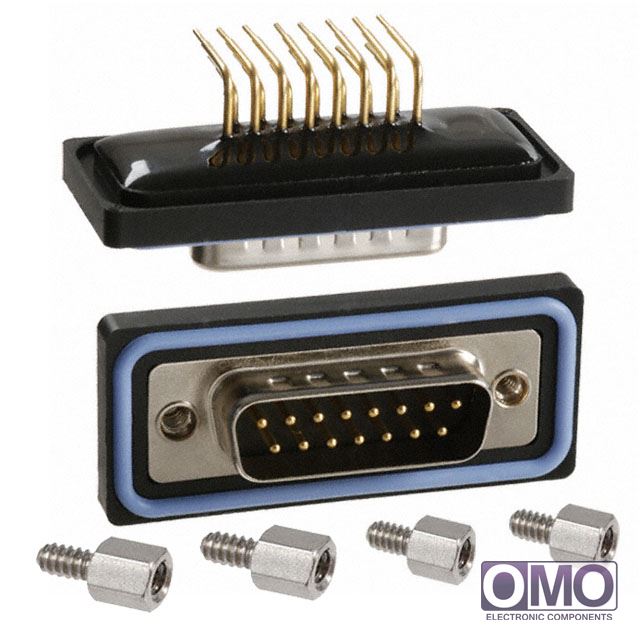

- D-Sub Connector Plug, Male Pins 15 Position Panel Mount, Through Hole, Right Angle Solder
- Category
- Connectors, Interconnects
- Family
- D-Sub Connectors
- To learn about the specification of A-DS-15-AA-WP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add A-DS-15-AA-WP with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of A-DS-15-AA-WP.
- We are offering A-DS-15-AA-WP for competitive price in the global market, please send us a quote request for pricing. Thank you!
| Packaging | Tray | |
| Connector Style | D-Sub | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 15 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 2 (DA, A) | |
| Contact Type | Signal | |
| Mounting Type | Panel Mount, Through Hole, Right Angle | |
| Flange Feature | Mating Side; Female Screwlock | |
| Termination | Solder | |
| Features | Grounding Indents | |
| Shell Material, Finish | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Operating Temperature | -40°C ~ 105°C | |
| Voltage Rating | - | |
| Current Rating | 5A | |
| Housing Material | Polyamide (PA), Nylon, Glass Filled | |
| Color | Black | |
| Other Names | A-DS 15 AA-WP-R A-DS15AA-WP-R ADS15AAWPR AE10106 | |
