- Part Number

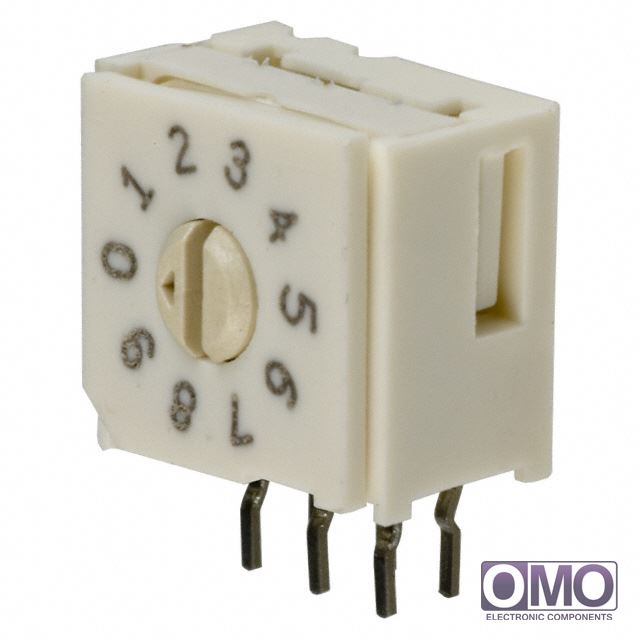

94HAB10RAT
- Manufacturer
Grayhill, Inc.
- Description
- SWITCH BCD ROTARY DIP R/A 50V
- Category
- Switches
- Family
- DIP Switches
- To learn about the specification of 94HAB10RAT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 94HAB10RAT with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 94HAB10RAT.
- We are offering 94HAB10RAT for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 94HAB10RAT
| Packaging | Tube | |
| Circuit | BCD | |
| Number of Positions | 10 | |
| Current Rating | 100mA | |
| Voltage Rating | 50VDC | |
| Actuator Type | Rotary for Tool | |
| Actuator Level | Flush, Recessed | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Height Above Board | 0.400" (10.16mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Pitch | 0.100" (2.54mm), Full | |
| Washable | Yes | |
| Features | Sealed | |
| Body Material | Plastic | |
| Length | 0.430" (10.92mm) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mechanical Life | 10,000 Cycles | |
| Electrical Life | - | |
| Other Names | GH7251 | |
