Home » All Products » Switches » Snap Action, Limit Switches » 91MCE1-P1

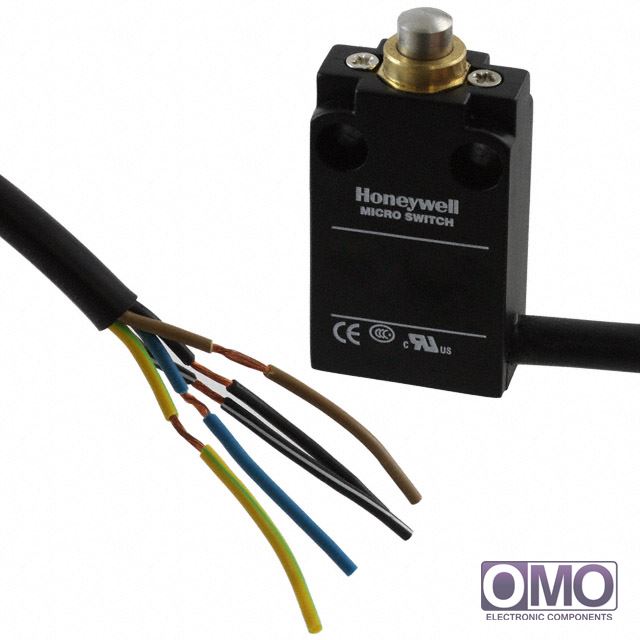

91MCE1-P1

View larger image

Part Number

91MCE1-P1

Manufacturer

Description
SW TOP PIN PLNGR MINI DPST 120V
Category
Switches
Family
Snap Action, Limit Switches
  • To learn about the specification of 91MCE1-P1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 91MCE1-P1 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 91MCE1-P1.
  • We are offering 91MCE1-P1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 91MCE1-P1
PackagingBulk
CircuitDPST (1-NO, 1-NC)
Switch FunctionOn-Mom, Off-Mom
Current Rating6A (AC), 550mA (DC)
Voltage Rating - AC120V
Voltage Rating - DC125V
Actuator TypeRound (Pin Plunger)
Mounting TypeChassis Mount
Termination StyleCable Leads
Ingress ProtectionIP67 - Dust Tight, Waterproof
FeaturesCable Length 1m
Operating Force, Torque1122gf
Release Force-
Pretravel0.071" (1.8mm)
Differential Travel0.031" (0.8mm)
Overtravel0.125" (3.2mm)
Operating Position-
Mechanical Life5,000,000 Cycles
Electrical Life500,000 Cycles
Operating Temperature-25°C ~ 85°C
Other Names480-2894
91MCE1P1
