- Part Number

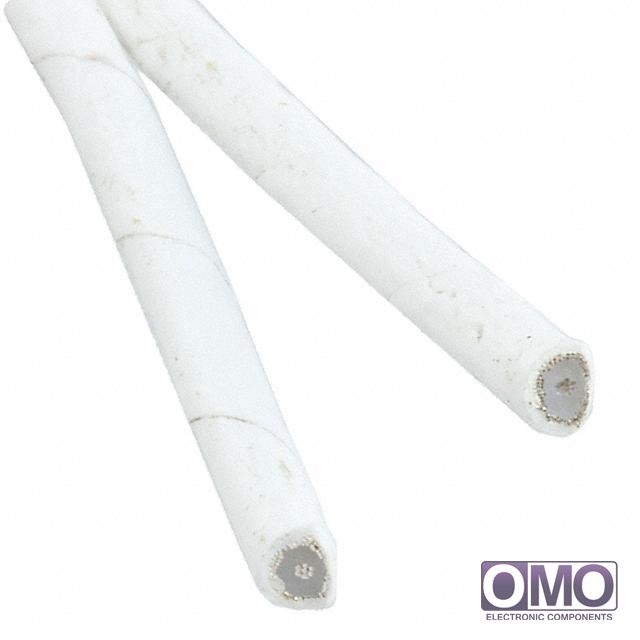

9188A WH001
- Manufacturer
Alpha Wire
- Description
- CABLE COAXIAL RG188A 30AWG 1000'
- Category
- Cables, Wires
- Family
- Coaxial Cables (RF)
- To learn about the specification of 9188A WH001, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 9188A WH001 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 9188A WH001.
- We are offering 9188A WH001 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 9188A WH001
| Cable Type | Coaxial | |
| Cable Group | RG-188A | |
| Wire Gauge | 30 AWG | |
| Conductor Strand | 7 Strands / 0.0067" | |
| Jacket (Insulation) Material | Polytetrafluoroethylene (PTFE) | |
| Jacket (Insulation) Diameter | 0.105" (2.67mm) | |
| Shield Type | Braid | |
| Impedance | 50 Ohm | |
| Length | 1000' (304.8m) | |
| Jacket Color | White | |
| Usage | - | |
| Features | - | |
| Conductor Material | Steel, Silver Coated | |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | |
| Dielectric Diameter | 0.060" (1.52mm) | |
| Shield Material | Copper, Silver Coated | |
| Shield Coverage | 94% | |
| VoP, Velocity of Propagation | 70 | |
| Operating Temperature | -55°C ~ 200°C | |
| call me | [email protected] | |
